6.LocatetheTR500keyconnectorontheThinkServerRAID500Adapterandthencarefullyinsertthe
TR500Keyintotheconnector.Ifnecessary,youcanremovetheThinkServerRAID500Adapterfirst,
installtheTR500Keyonit,andthenreinstalltheThinkServerRAID500Adapter.See“Installingor
removingtheRAIDcard”onpage62
.
Note:EnsurethattheTR500KeyissecurelyseatedontheThinkServerRAID500Adapter.

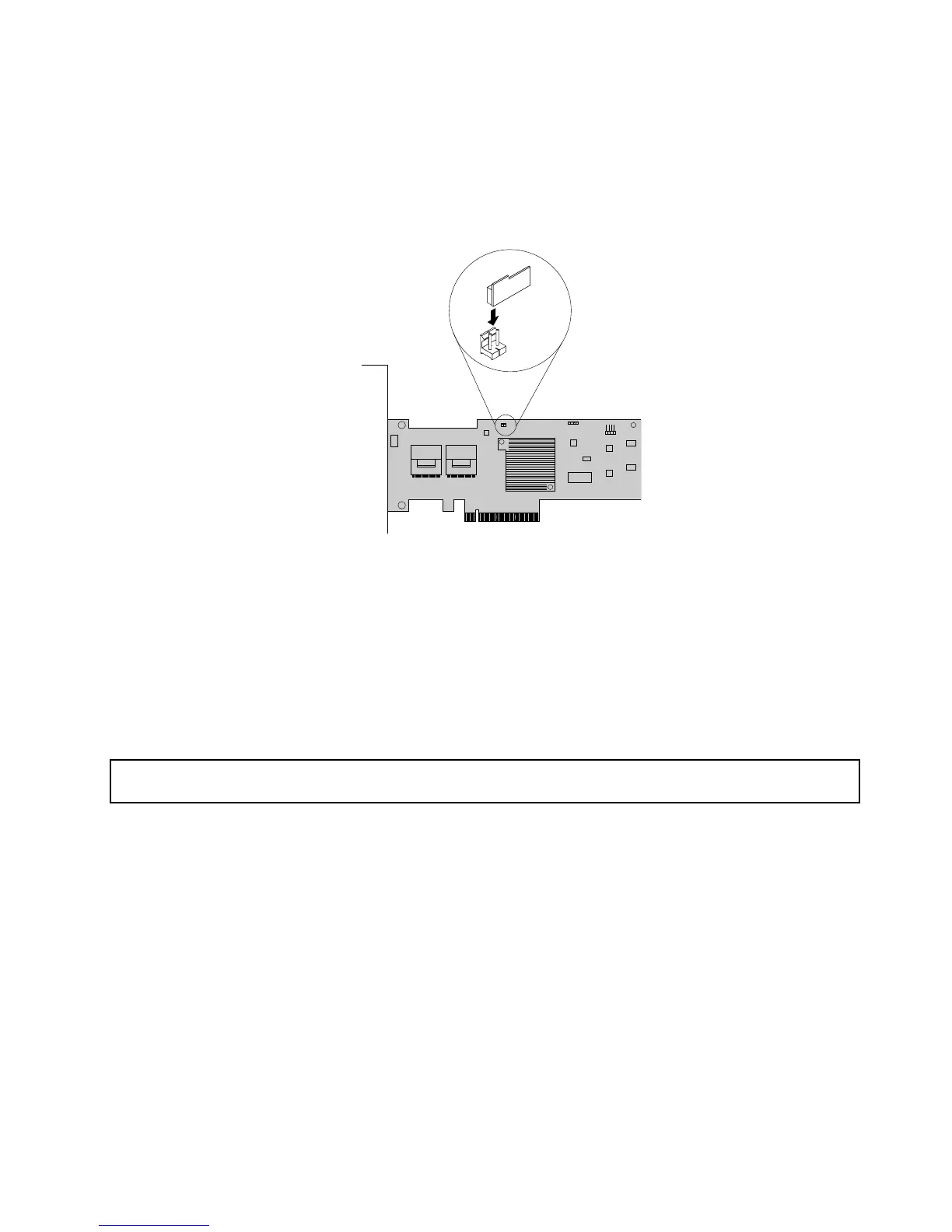

Figure37.InstallingtheTR500Key
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletetheinstallation,goto“Completingthepartsreplacement”onpage106
.Then,thehardware
RAID5isavailableforyourserverifyourserverhastherequirednumberofharddiskdrivesinstalled.
RefertotheMegaRAIDSASSoftwareUserGuideonthedocumentationDVDthatcomeswithyourserver
forinformationabouthowtoconfigurethehardwareRAID.
RemovingtheTR500Key
Attention:Donotopenyourserverorattemptanyrepairbeforereadingandunderstanding“Safetyinformation”
onpageiiiand“Guidelines”onpage53.
Attention:BackupyourdatabeforeyoubeginifyouneedtoreconfigureRAIDandreinstalltheoperating
systemafterremovingtheTR500Key.
Beforeyoubegin,printalltherelatedinstructionsorensurethatyoucanviewthePDFversiononanother
computerforreference.
Notes:
•IfyouremovetheTR500Key,thehardwareRAID5willbedisabled.
•UseanydocumentationthatcomeswiththeTR500Keyandfollowthoseinstructionsinadditionto
theinstructionsinthistopic.
ToremovetheTR500Key,dothefollowing:
1.Removeallmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,disconnectall
powercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedtotheserver.
Chapter6.Installing,removing,orreplacinghardware67
