6.InstalltheRDXdriveretainer1onthesideofthenewRDXdrive.Then,slidethenewRDXdrivewiththe
retainerintothedrivebayfromthefrontoftheserveruntiltheRDXdrivesnapsintoposition.

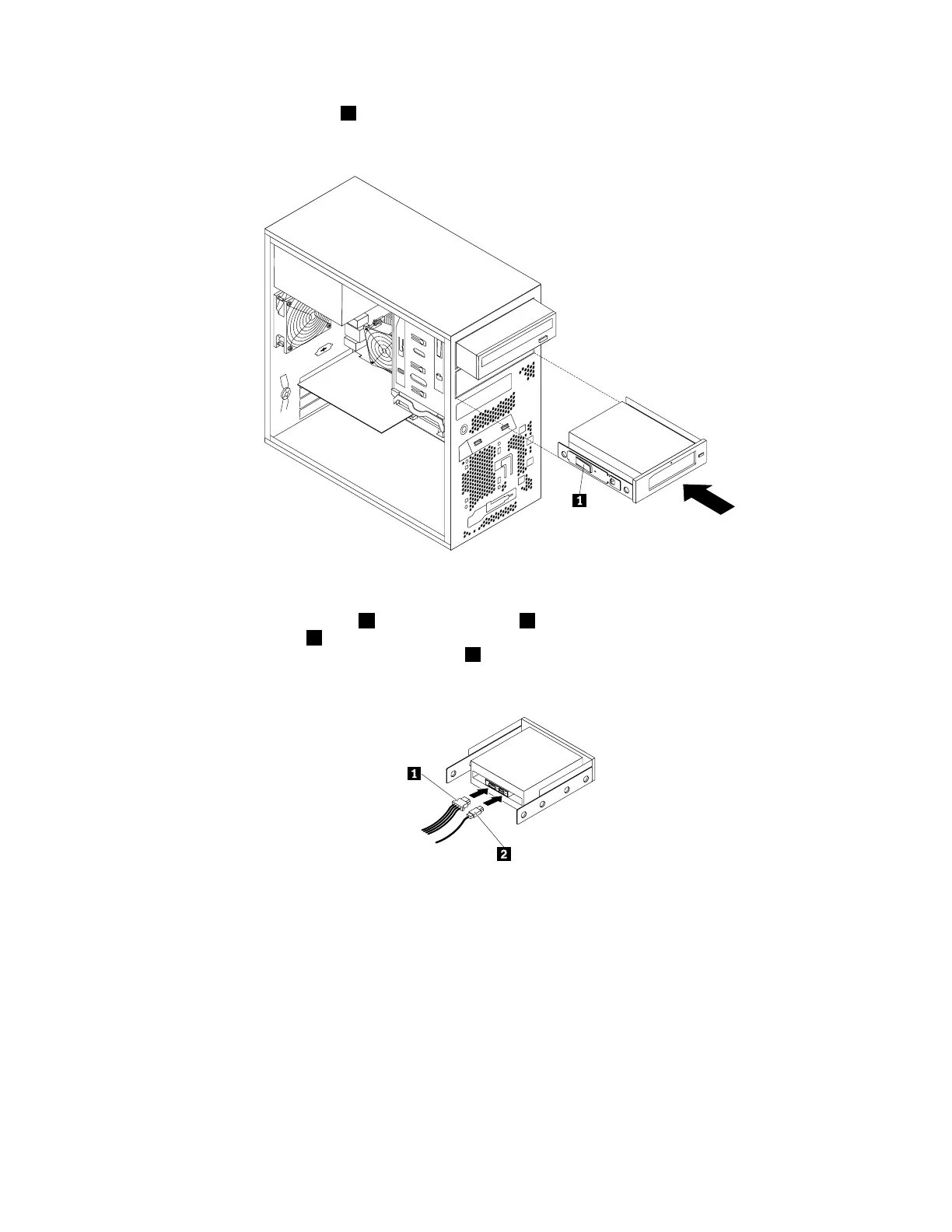

Figure53.InstallingtheRDXdrive
7.Connectthe4-pinpowercable1andthesignalcable2totherearoftheRDXdrive.Connecttheother
endofthepowercable1toanavailableopticaldrivefive-wirepowerconnector.ConnecttheUSB
connectorontheotherendofthesignalcable2tothefrontUSB2.0connectoronthesystemboard.
See“Locatingpartsonthesystemboard”onpage13.
Figure54.ConnectingtheRDXdrive
8.Reinstallthefrontbezel.See“Removingandreinstallingthefrontbezel”onpage38.
9.Dooneofthefollowing:
•IfyouareinstallinganRDXdrive,savetheremovedplasticpanelfromthefrontbezelintheeventthat
youlaterremovethedriveandneedtheplasticpaneltocoverthedrivebay.
•IfyouarereplacinganRDXdriveandareinstructedtoreturntheoldRDXdrive,followallpackaging
instructionsanduseanypackagingmaterialsthataresuppliedtoyouforshipping.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
Chapter6.Installing,removing,orreplacinghardware69
