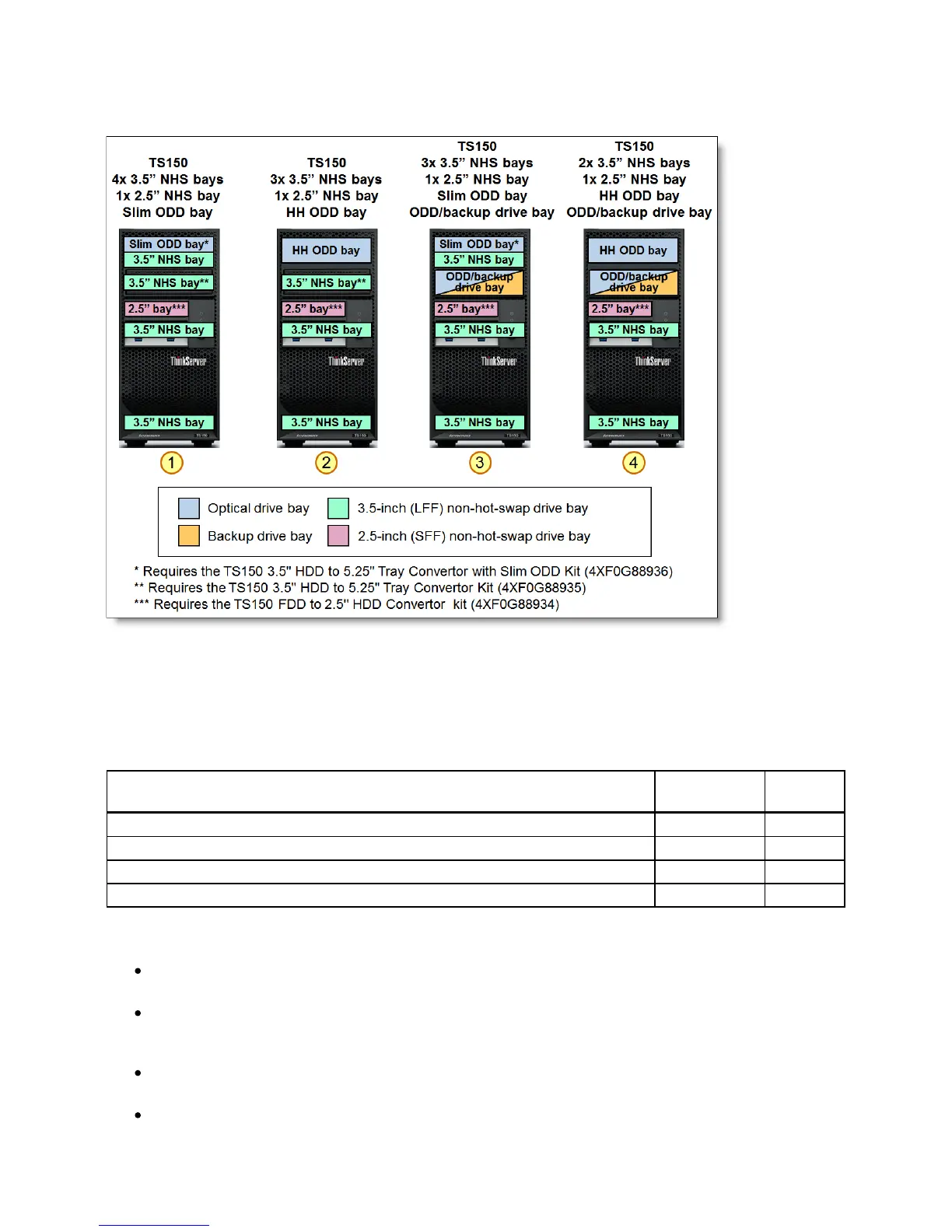

These configurations are shown in the following figure.
Figure 5. Internal storage configurations
In addition, the TS150 server can be upgraded with 2x SD card internal slots. The SD card slots are
connected to the Intel Platform Controller Hub (PCH) via USB.
The following table lists the internal storage expansion options that are available for the TS150 server.
Table 5. Internal storage expansion options
Description Part number
Maximum
supported
ThinkServer TS150 3.5" HDD to 5.25" Tray Convertor Kit 4XF0G88935 1
ThinkServer TS150 3.5" HDD to 5.25" Tray Convertor with Slim ODD Kit 4XF0G88936 1
ThinkServer TS150 FDD to 2.5" HDD Convertor Kit 4XF0G88934 1
ThinkServer SDHC Flash Assembly Module 4XF0G88933 1
Configuration notes:
The ThinkServer TS150 3.5" HDD to 5.25" Tray Convertor Kit is required when a 3.5-inch drive is
installed in the ODD/backup drive bay.
The ThinkServer TS150 3.5" HDD to 5.25" Tray Convertor with Slim ODD Kit is required when a 3.5-
inch drive is installed in the half-high ODD bay, or a slim optical drive is installed in the half-high ODD
bay, or both.
The TS150 FDD to 2.5'' HDD Convertor Kit is required when a 2.5-inch drive is installed in the 2.5-
inch drive bay.
The SDHC Flash Assembly Module adds support for the use of up to two SD cards in the server.
Lenovo ThinkServer TS150 (Intel Xeon E3-1200 v5, Core i3, Pentium/Celeron G Series Processors) 10

Lenovo ThinkServer TS150 Specifications

General

Bus type	DMI3
Scalability	1S
Processor cache	8 MB
Processor cores	4
Processor model	E3-1225V5
System bus rate	8 GT/s
Processor series	Intel Xeon E3-1200 v5
Processor socket	LGA 1151 (Socket H4)
Processor codename	Skylake
Execute Disable Bit	Yes
Processor frequency	3.3 GHz
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor manufacturer	Intel
Processor package size	37.5 x 37.5 mm
Processor boost frequency	3.7 GHz
Processor operating modes	64-bit
PCI Express configurations	1x16, 1x8+2x4, 2x8
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Design Power (TDP)	80 W
Number of processors installed	1
Maximum number of PCI Express lanes	16
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory voltage supported by processor	1.35 V
Memory channels supported by processor	Dual
Memory clock speeds supported by processor	1333, 1600, 1866, 2133 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
Maximum internal memory supported by processor	64 GB
HDD size	3.5 \
RAID levels	0, 1, 5, 10
HDD interface	Serial ATA
Optical drive type	DVD-ROM
Total storage capacity	2000 GB
Maximum storage capacity	24 TB
Number of HDDs installed	2
Internal memory	8 GB
Memory clock speed	2133 MHz
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	1 x 8 GB
On-board graphics card ID	0x191D
On-board graphics card model	Intel® HD Graphics P530
On-board graphics card family	Intel® HD Graphics
Maximum on-board graphics card memory	1.7 GB
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	400 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	1150 MHz
Number of displays supported (on-board graphics)	3
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	8
PCI Express slots version	3.0
Operating altitude	0 - 3048 m
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	8 - 80 %
Power supply	400 W
Power supply input frequency	50 - 60 Hz
Redundant power supply (RPS) support	-
Chassis type	Tower
Operating system installed	Windows Server 2012 Foundation
Compatible operating systems	Windows Server 2012/2012 R2, Red Hat Enterprise Linux, SUSE Linux 11/12, Windows 10, Canonical Ubuntu 14.04, VMware vSphere 2015
Processor ARK ID	88168
Intel Secure Key Technology version	1.00
Intel® Hyper Threading Technology (Intel® HT Technology)	No

Weight and Dimensions

Depth	431 mm
Width	175 mm
Height	375 mm
Weight	12500 g
