Lenovo ThinkServer TS150 Product Guide

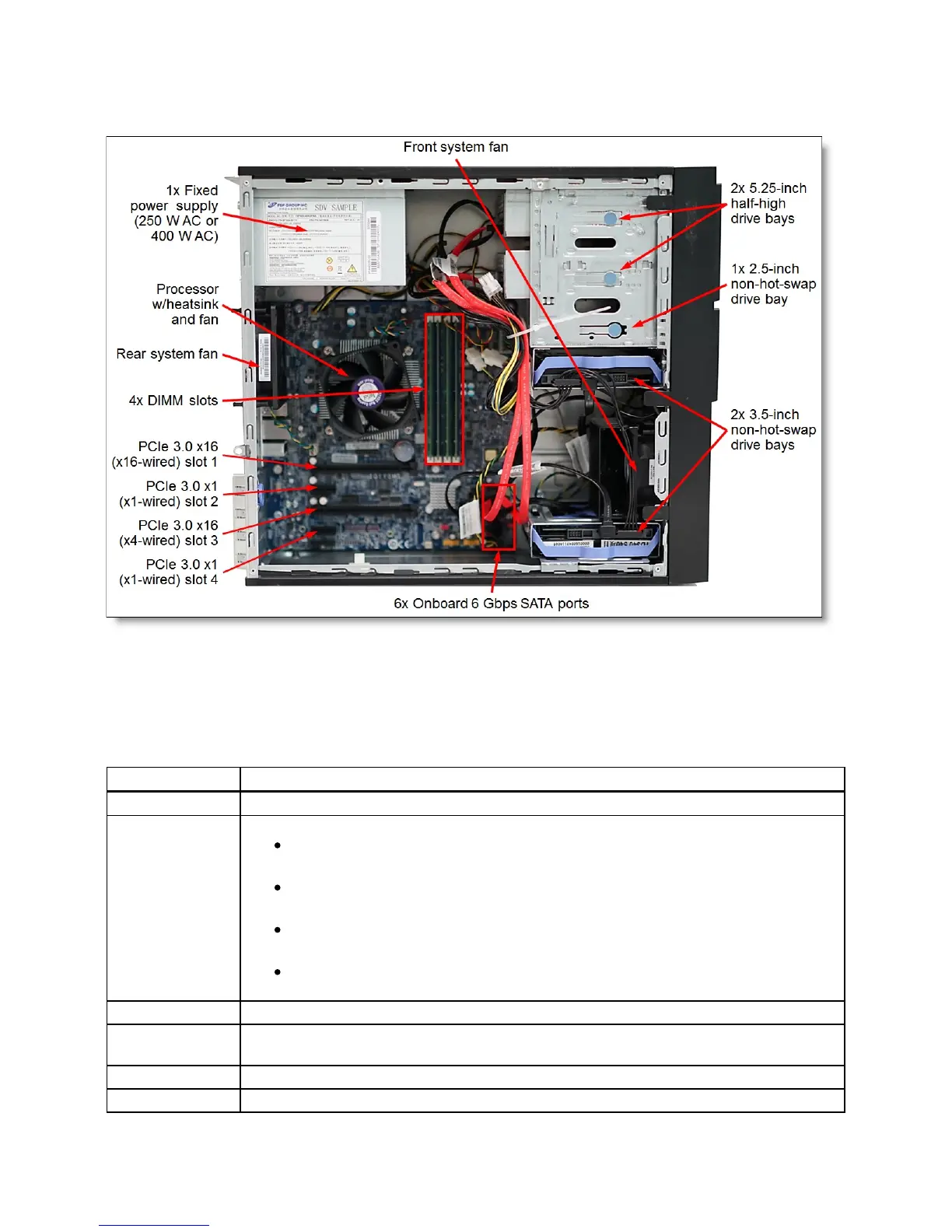

The following figure shows the internal components of the TS150.
Figure 4. TS150 internal view
System specifications
The following table lists the system specifications.
Table 1. System specifications
Components Specification
Form factor Tower or 4U rack-mount (on a shelf)
Processor One processor:
Intel Xeon processor E3-1200 v5 product family with four cores up to 3.7 GHz, 8 MB
cache, and up to 2133 MHz memory speed; or
Intel Core i3 processor 6100/6300 product families with two cores up to 3.9 GHz, up to
4 MB cache, and 2133 MHz memory speed; or
Intel Pentium processor G4400/G4500 product families with two cores up to 3.6 GHz,
3 MB cache, and up to 2133 MHz memory speed; or
Intel Celeron Processor G3900 product family with two cores up to 2.9 GHz, 2 MB
cache, and up to 1866 MHz memory speed.
Chipset Intel C236.
Memory Four DIMM sockets. Support for ECC and non-ECC UDIMMs. DIMM speeds up to 2133 MHz.
Memory types (ECC and non-ECC) cannot be mixed.
Memory maximum Up to 64 GB with 4x 16 GB UDIMMs.
Memory protection Error-correcting code (ECC) memory (with ECC DIMMs).
Lenovo ThinkServer TS150 (Intel Xeon E3-1200 v5, Core i3, Pentium/Celeron G Series Processors) 5

Lenovo ThinkServer TS150 Specifications

General

Bus type	DMI3
Scalability	1S
Processor cache	8 MB
Processor cores	4
Processor model	E3-1225V5
System bus rate	8 GT/s
Processor series	Intel Xeon E3-1200 v5
Processor socket	LGA 1151 (Socket H4)
Processor codename	Skylake
Execute Disable Bit	Yes
Processor frequency	3.3 GHz
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor manufacturer	Intel
Processor package size	37.5 x 37.5 mm
Processor boost frequency	3.7 GHz
Processor operating modes	64-bit
PCI Express configurations	1x16, 1x8+2x4, 2x8
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Design Power (TDP)	80 W
Number of processors installed	1
Maximum number of PCI Express lanes	16
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory voltage supported by processor	1.35 V
Memory channels supported by processor	Dual
Memory clock speeds supported by processor	1333, 1600, 1866, 2133 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
Maximum internal memory supported by processor	64 GB
HDD size	3.5 \
RAID levels	0, 1, 5, 10
HDD interface	Serial ATA
Optical drive type	DVD-ROM
Total storage capacity	2000 GB
Maximum storage capacity	24 TB
Number of HDDs installed	2
Internal memory	8 GB
Memory clock speed	2133 MHz
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	1 x 8 GB
On-board graphics card ID	0x191D
On-board graphics card model	Intel® HD Graphics P530
On-board graphics card family	Intel® HD Graphics
Maximum on-board graphics card memory	1.7 GB
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	400 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	1150 MHz
Number of displays supported (on-board graphics)	3
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	8
PCI Express slots version	3.0
Operating altitude	0 - 3048 m
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	8 - 80 %
Power supply	400 W
Power supply input frequency	50 - 60 Hz
Redundant power supply (RPS) support	-
Chassis type	Tower
Operating system installed	Windows Server 2012 Foundation
Compatible operating systems	Windows Server 2012/2012 R2, Red Hat Enterprise Linux, SUSE Linux 11/12, Windows 10, Canonical Ubuntu 14.04, VMware vSphere 2015
Processor ARK ID	88168
Intel Secure Key Technology version	1.00
Intel® Hyper Threading Technology (Intel® HT Technology)	No

Weight and Dimensions

Depth	431 mm
Width	175 mm
Height	375 mm
Weight	12500 g
