8.Ensurethatthenewpowersupplyassemblyisthecorrectreplacement.
9.Installthenewpowersupplyassemblyintothechassissothatthescrewholesinthenewpowersupply
assemblyarealignedwiththecorrespondingholesintherearofthechassis.Then,installthethree
screwstosecurethenewpowersupplyassemblyinplace.
Note:UseonlyscrewsprovidedbyLenovo.

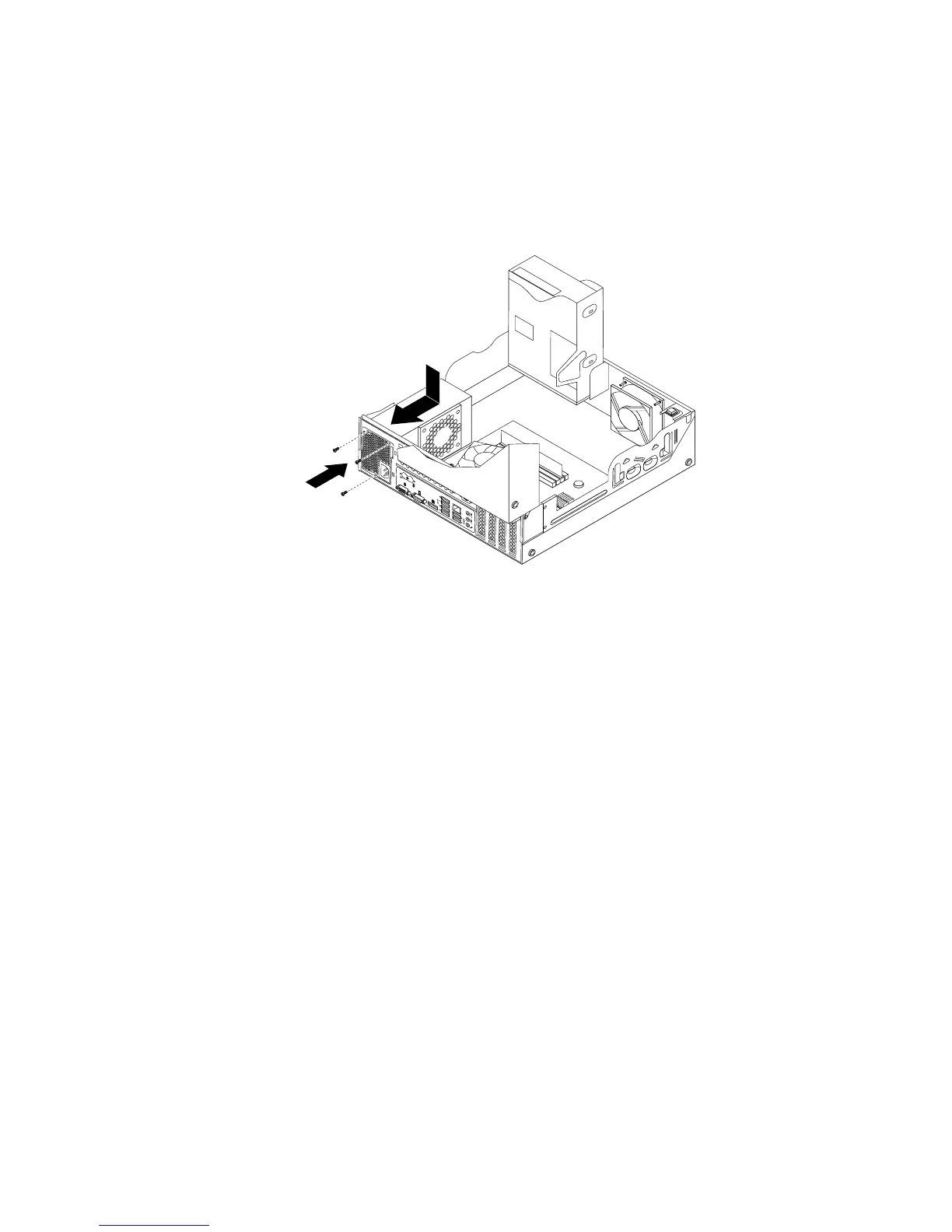

Figure40.Installingthepowersupplyassembly
10.Connectthenewpowersupplyassemblycablestoalldrivesandthesystemboard.See“Locating
partsonthesystemboard”onpage12.
Chapter5.Installingorreplacinghardware59
