• If the server is installed in a rack, slide the server out on its rack slide rails to gain access to the top cover,
or remove the server from the rack.
Two zones could be installed with a PCIe riser assembly. See the following instructions based on the location
of the riser:
• Zone 1 (PCIe slot 1 to 3): “Remove the PCIe riser assembly from zone 1” on page 158
• Zone 2 (PCIe slot 5 to 6): “Remove the PCIe riser assembly from zone 2” on page 158
Remove the PCIe riser assembly from zone 1
Watch the procedure. A video of this procedure is available from the following links:
•
https://www.youtube.com/playlist?list=PLYV5R7hVcs-C6QgmsUMRG6ul0bHzrGmsG
• https://list.youku.com/albumlist/show/id_54461099
Procedure
Step 1. Make preparations for this task.
a. Remove the top cover (see “Remove the top cover” on page 214).
b. Disconnect cables that are connected to the adapters.
Step 2. Grasp and lift the PCIe riser assembly to remove it from the system board.

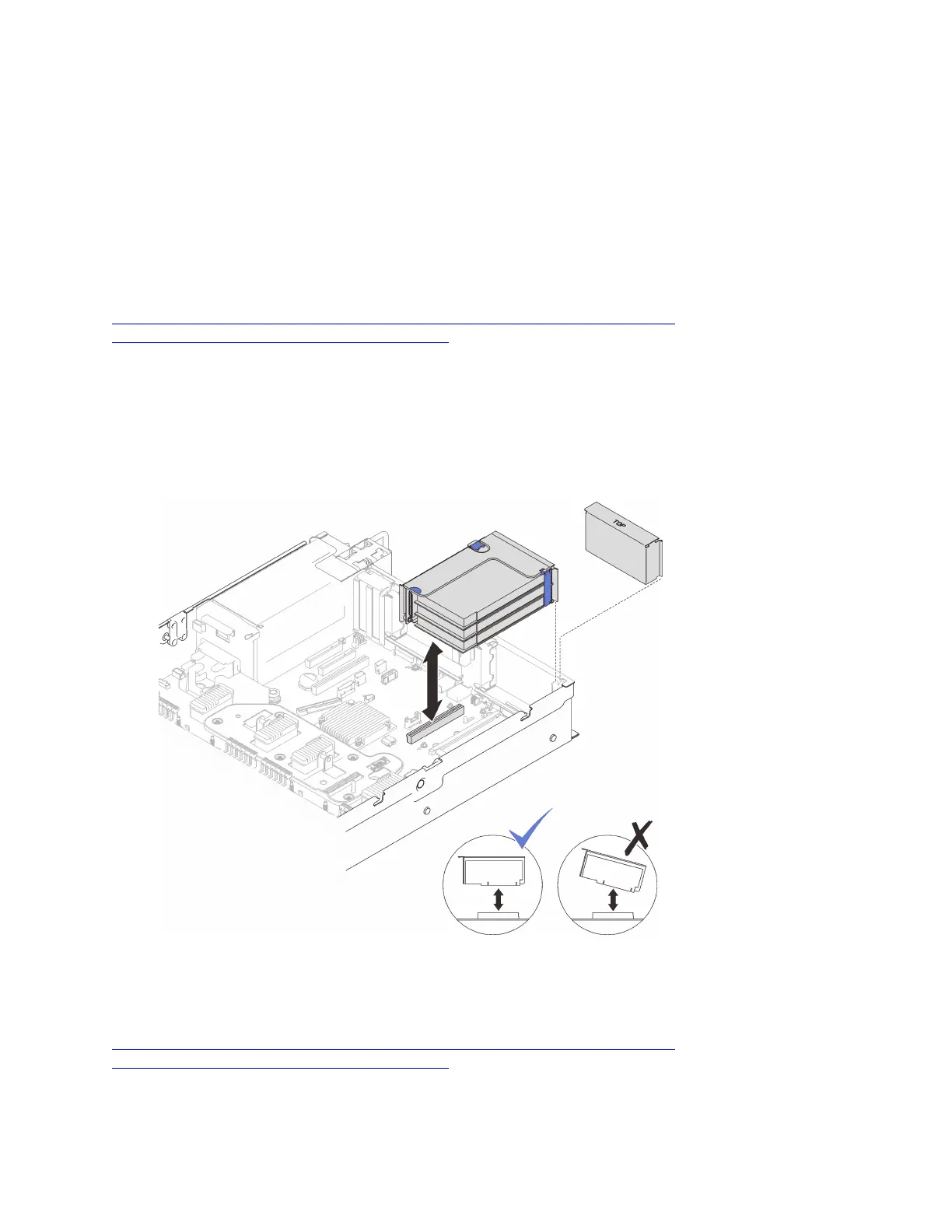

Figure 72. Removing the PCIe riser assembly from zone 1
Remove the PCIe riser assembly from zone 2
Watch the procedure. A video of this procedure is available from the following links:
•
https://www.youtube.com/playlist?list=PLYV5R7hVcs-C6QgmsUMRG6ul0bHzrGmsG
• https://list.youku.com/albumlist/show/id_54461099
Procedure
Step 1. Make preparations for this task.
