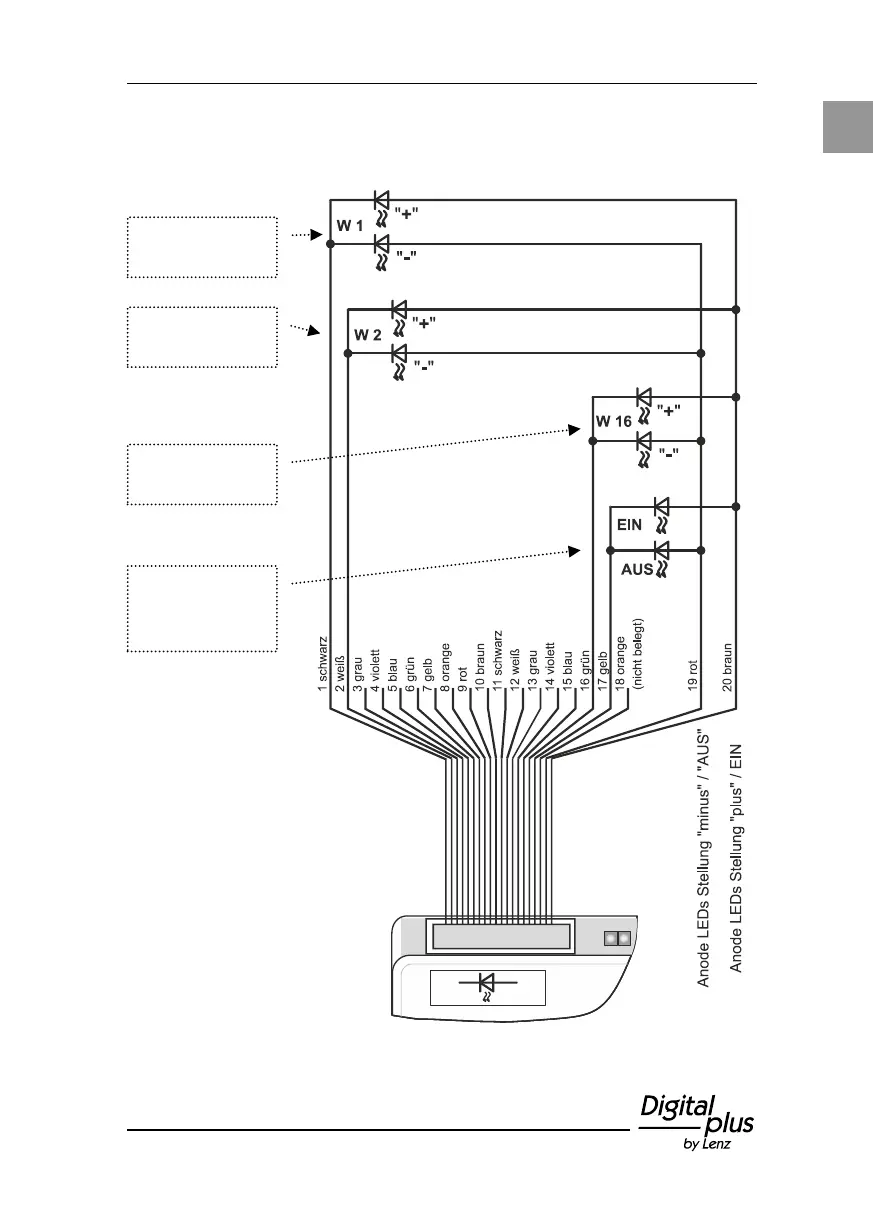

Das Prinzip des Anschlusses der Leuchtdioden (LEDs) zeigt die
folgende Abbildung:
LED-Paar für
Weiche 1
LED-Paar für
Weiche 2
LED-Paar für
Weiche 16
…und so
weiter bis zum
LED-Paar
NOTAUS / EIN
(optional)
