6 Overview of connections
Power XpressNet
Connection plug board
to connect LEDs
XpressNet
connection 1
power supply
(optional)
XpressNet
connection 2
Connection plug board
to connect keys

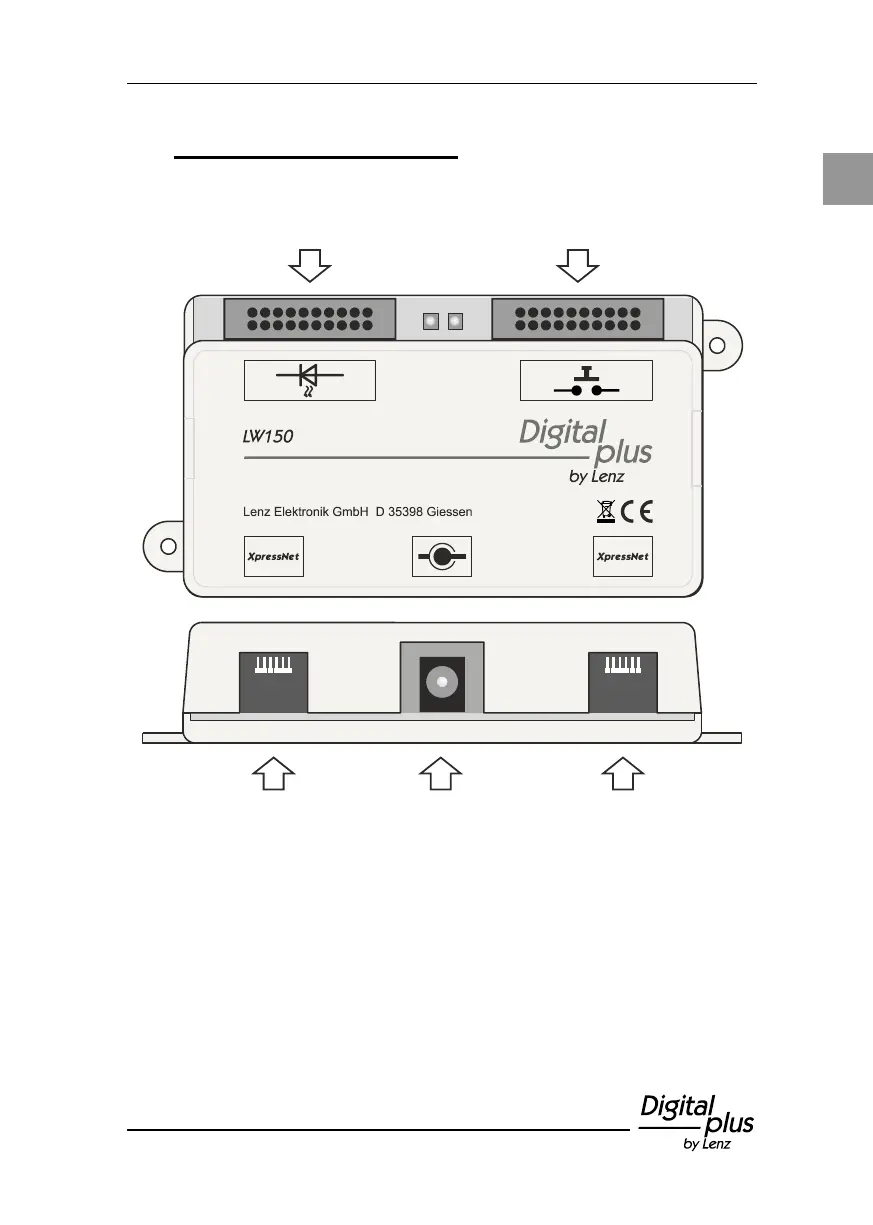

Fig. 2: The connections of the LW150
