DeviceNet
14 Appendix
14-4
L
BA2175 EN 2.0

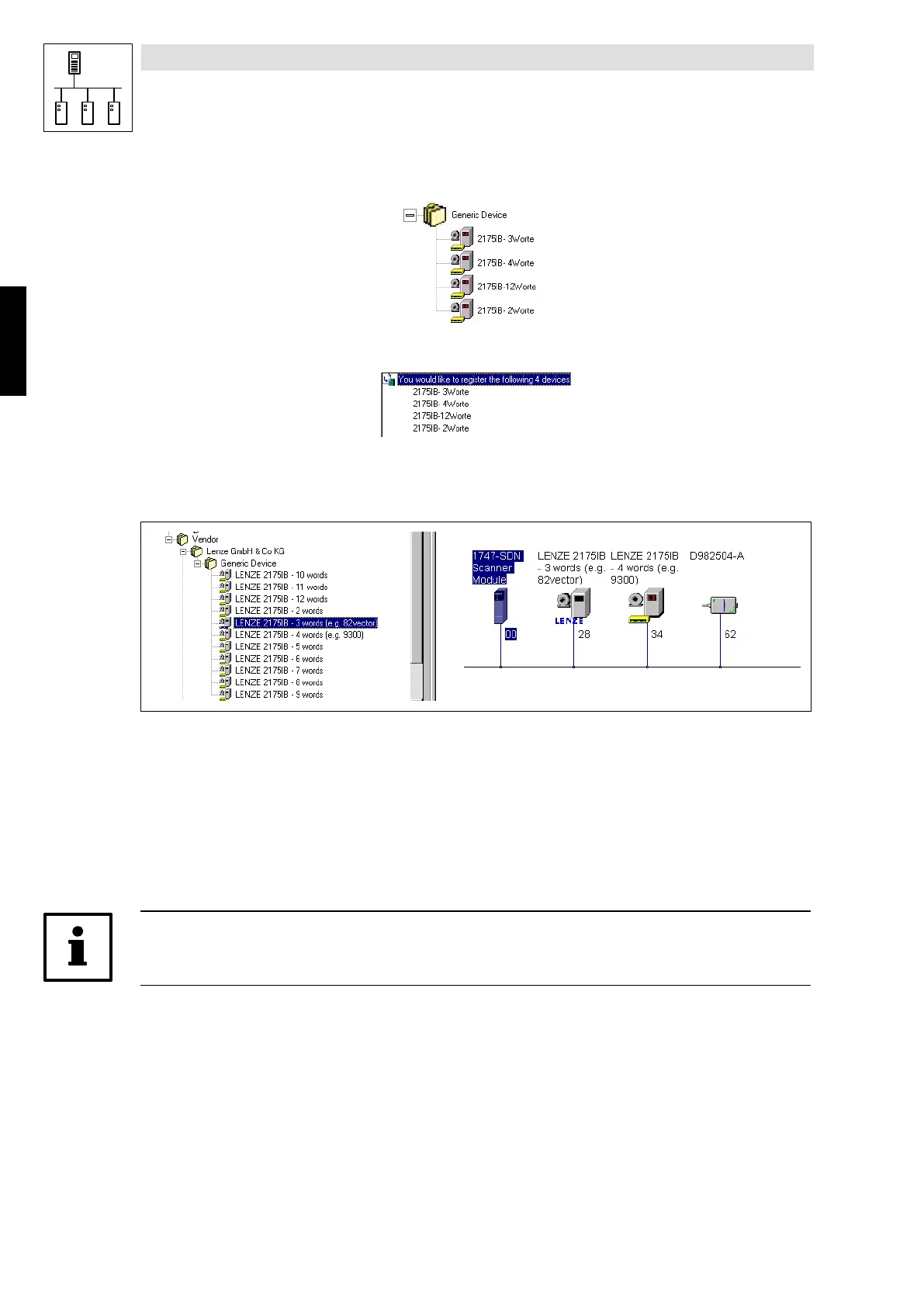

6. All assigned symbols are displayed.
2175DeN056
7. The registration query will be completed when pressing Complete .
2175DeN057
All inserted data are now available for the hardware catalog. The path is:
DeviceNet/Vendor/Lenze GmbH&CoKG/Generic Device
2175DeN059
The process data length depends on the controller used.
Select according to the controller:
• 820X: 4byte = 2 words
• 821X/822X: 4byte = 2 words
• 8200vector: 6byte = 3 words
• 93XX: 8byte = 4 words
• 9300 servo PLC: 24byte = 12 words
Tip!
“RSNetWorx” automatically assigns the EDS files if the controller is connected online.
