4. Register card Input / register card Output
2175DeN074/75

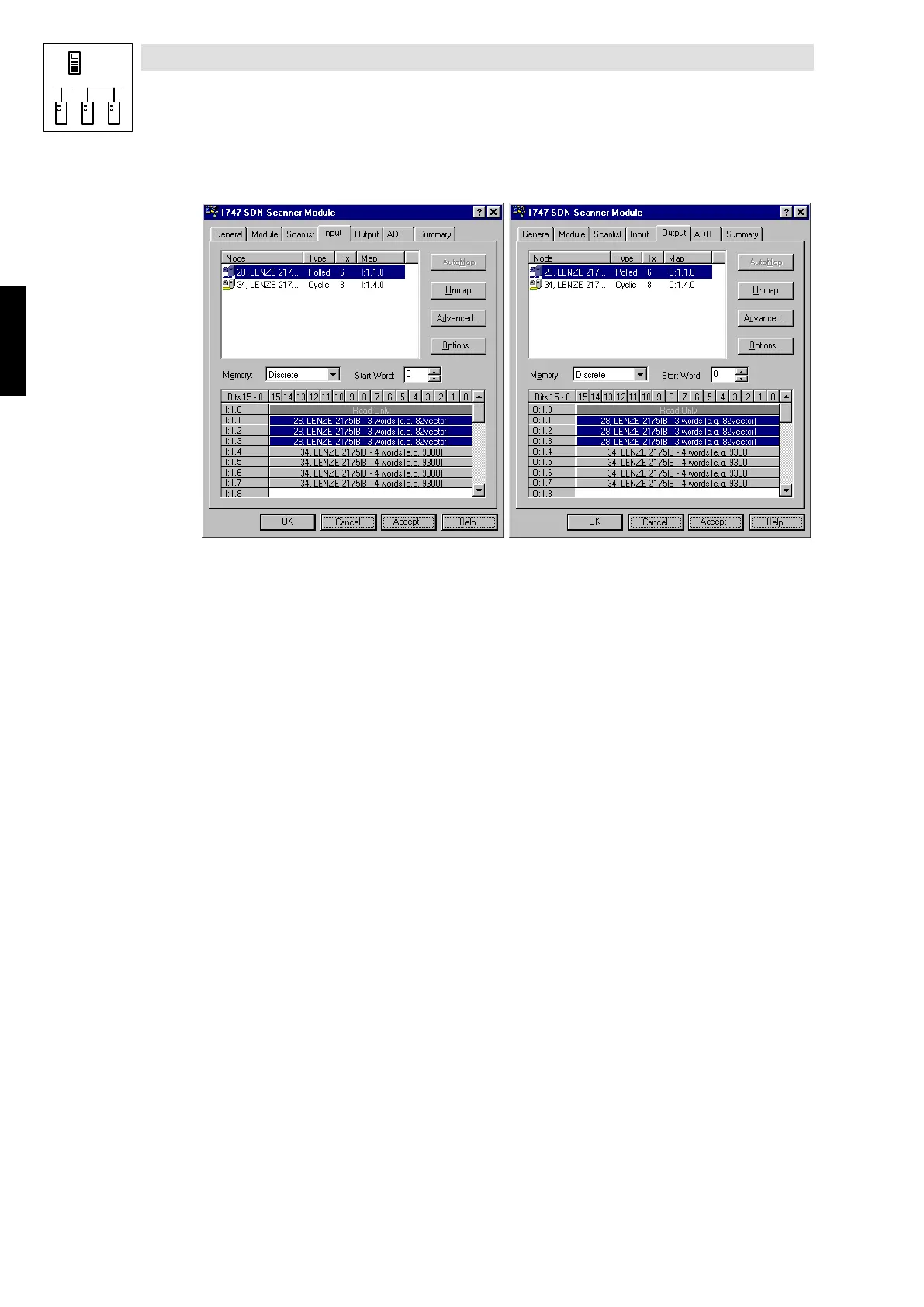

• Use Input to enter the peripheral input address of every device.
– The function Automap automatically assigns the input address in the DeviceNet scanner.
Select Unmap to remove this assignment.
– The input addresses determined here must be taken into account for the project under
RSLogix
• Use Output to enter the output peripheral address of every device.
– The function Automap automatically assigns output addresses in the DeviceNet scanner.
Select Unmap to remove this assignment.
– The output addresses determined here must be taken into account for the project under
RSLogix
The configuration for DeviceNet communication is completed now. The controllers are saved in the
scanner under the node and I/O peripheral address.
