Lenze 4800 - Page 279

Automation
13-9
48XX/49XXSHB0399
k
e
d
b
n
a
f
c
m
4900Str093

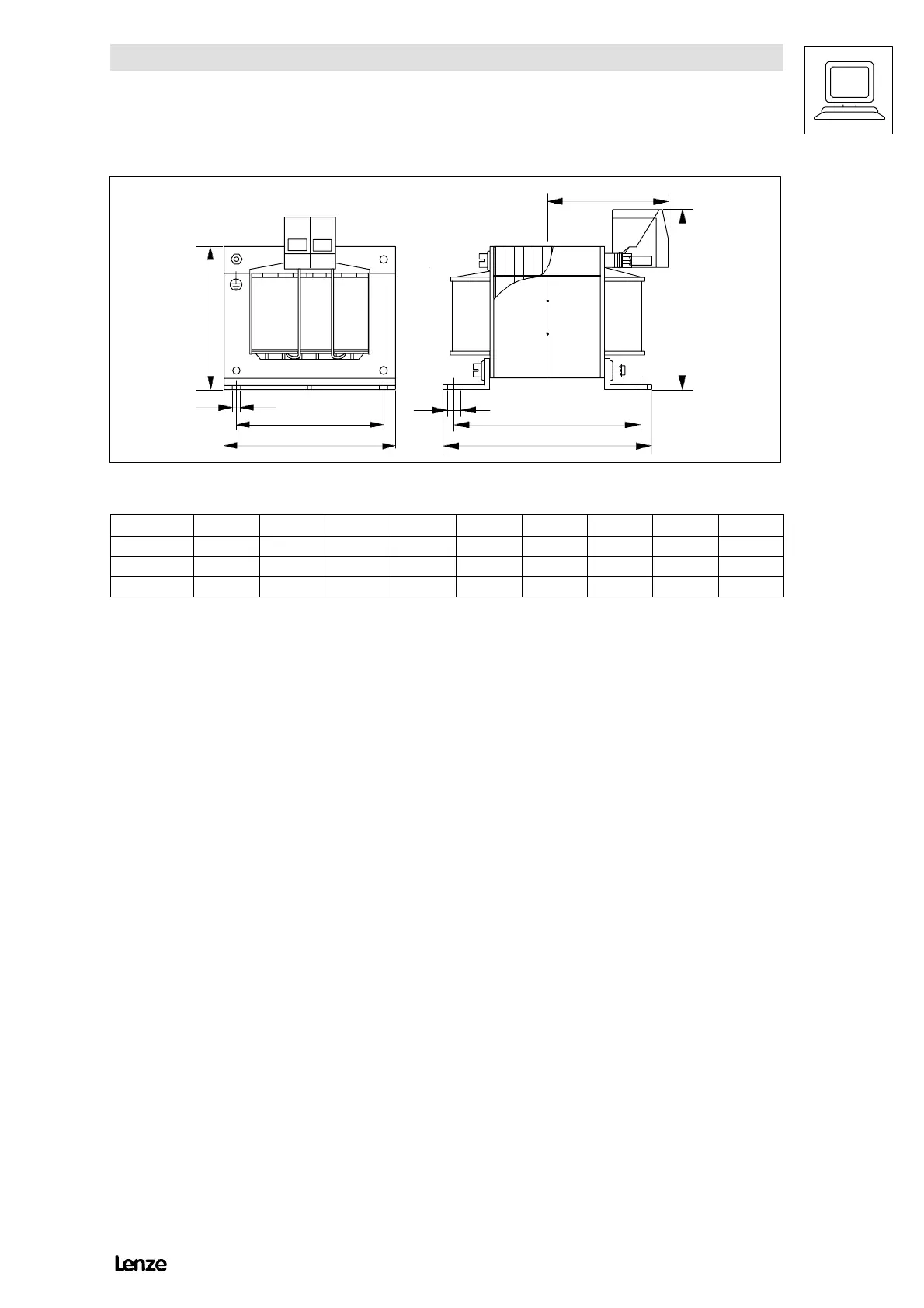

FIG 13-7 Mains choke for separate supply of the field bridge
Type a b c d e f k m n
4902 ... 4903 66 67 50 53 80 61 37 4.8 9
4904 ... 4X08 96 77 84 61 96 87 52 5.5 9
4X09 ... 4X13 96 88 84 70 112 87 64 5.5 9
All dimensions in mm
