Installation
4-28
48XX/49XXSHB0399
( Variant V013 with PROFIBUS interface module
The interface module type 2130IB connects Lenze controllers to the fast serial
communication system PROFIBUS. With PROFIBUS it is possible to parameterize
and control a controller via a host.
4900Str116

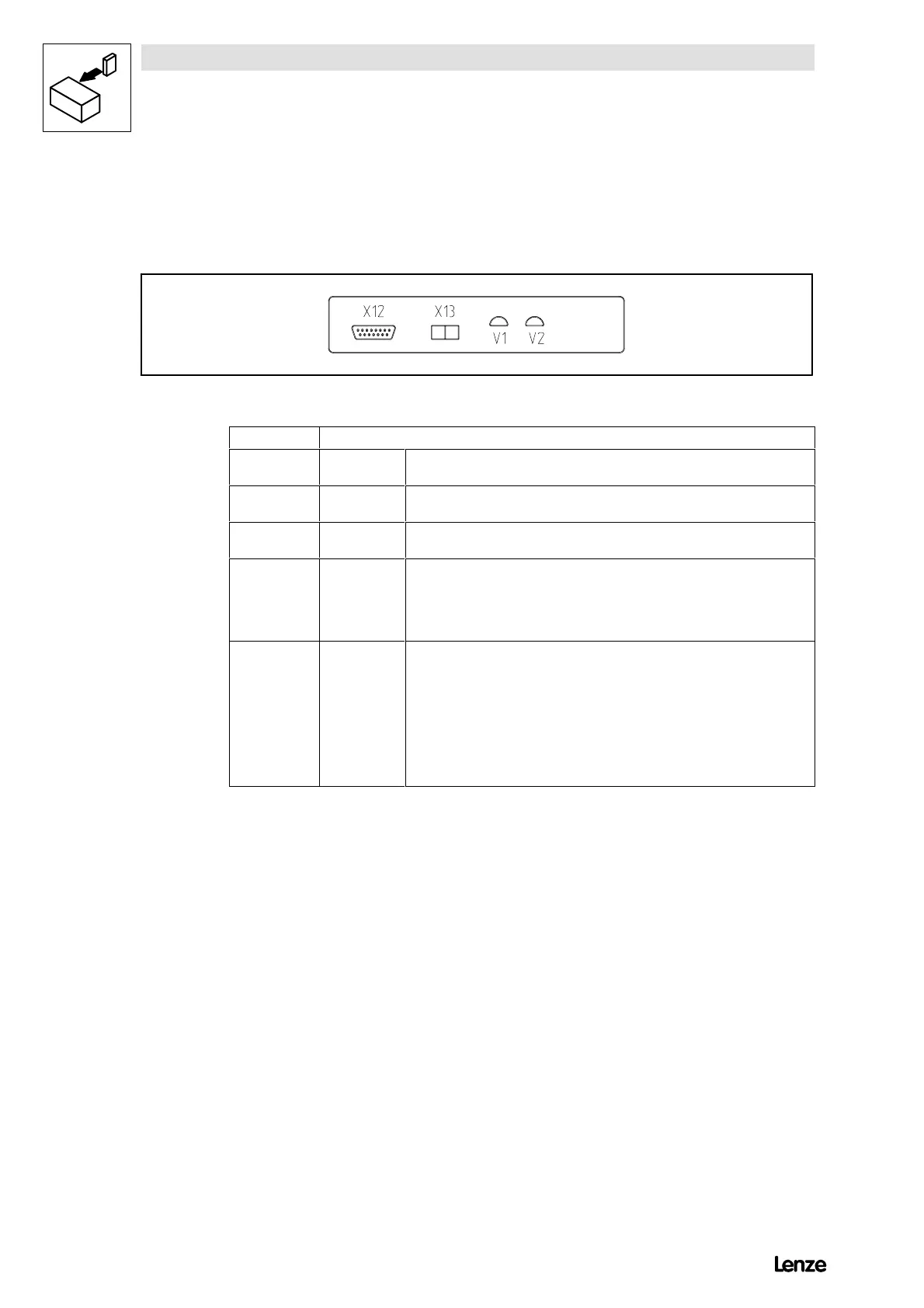

FIG 4-21 Front view 2130IB
Connection
Explanations
X12 RS485 bus
connection
9-pole SubD socket
X13-W30 Optical fibre
receiver
(only 2130IB, V002)
X13-W31 Optical fibre
sender
(only 2130IB, V002)
V1 2130IB supply OFF:
Module is not supplied. Controller is switched off or connection is
interrupted(X4).
ON:
Module is supplied.
V2 Communicatio
n 2130IB
OFF:
No supply or 2130IB and controller not yet initialised.
ON:
Module 2130IB and basic unit are initialised but the PROFIBUS-DP
communication is still not working.
FAST BLINKING (4x per second):
PROFIBUS-DP communication with user data
SLOW BLINKING (1x per second):
PROFIBUS-DP communication initialised
If the interface module 2130IB is no longer supplied, the bus system will not stop
working. However, the connected controller cannot be addressed by the host.
If necessary, the control stage of the controller should be supplied separately (see
chapter 4.3.3).
