Configuration
7-5
48XX/49XXSHB0399
9521
10 k
W
(lin.)
S3/2
+10 VRef.
V = +10 ... 0 V
Iset
min max
4900Str029

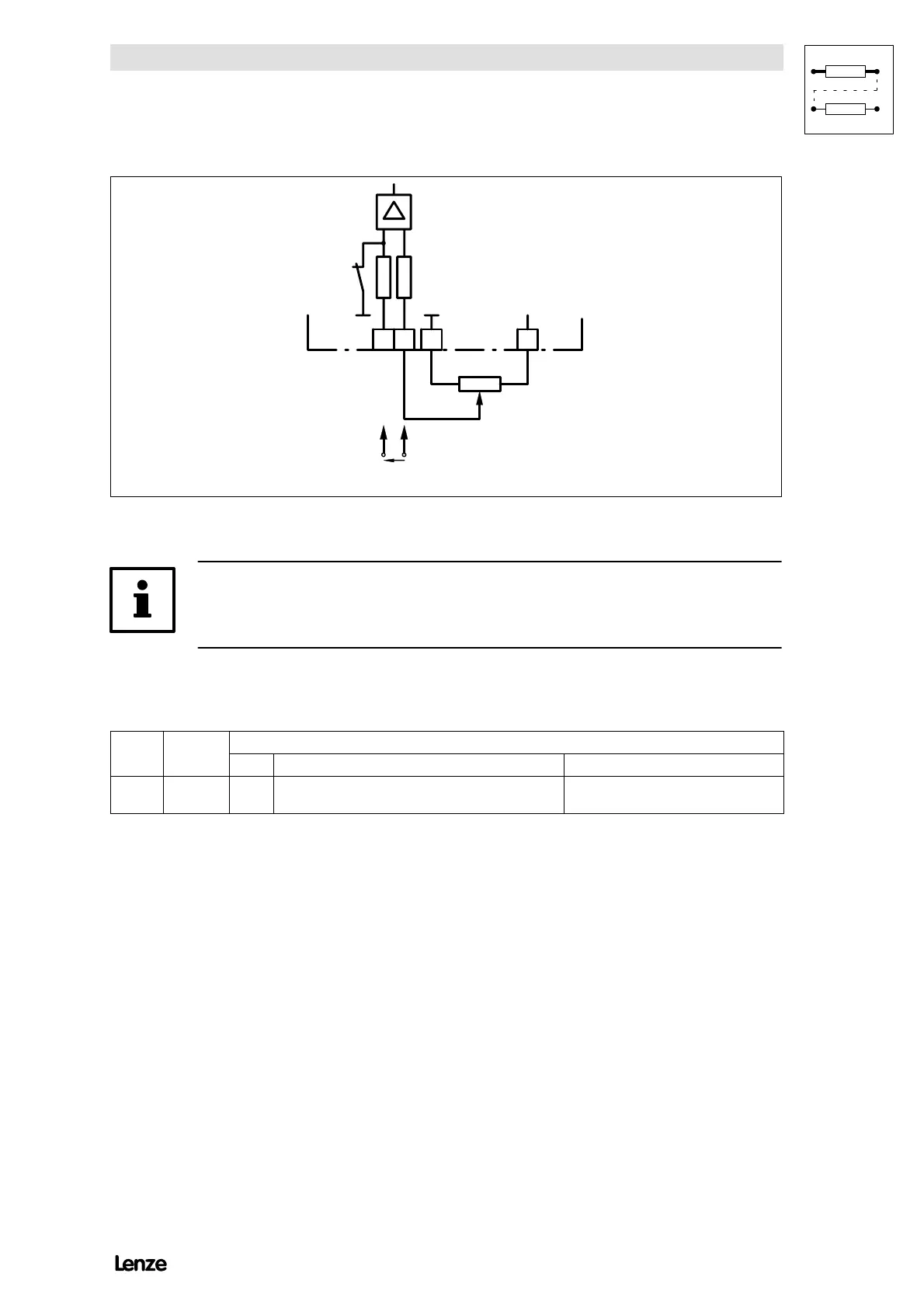

FIG 7-2 Connection diagram for external torque reduction via potentiometer or master voltage
Note!
The terminal input is inverted and assigned with 100 % I
max
to reduce the wiring
for standard applications without external torque limitation.
For torque limit inputs (e. g. via master frequency), the function C047 = 100% -
|terminal (1,2)| can be changed to function C047 = |terminal (X5)|.
Code Name
Possible settings
Lenze Selection Info
C282*¤ Function
for C047
0 -0- Function C047 = 100% - |input source|
-1- Function C047 = |input source|
