6.4.1.2 Automatically Obtain the PositionServo’s IP Address
To use this mode set dHCP = 1 via the diagnostic display LED (refer to section
7.1 for details). After setting this parameter, cycle the input power to the
PositionServo drive so that the setting can take effect. The LED display will be
“----“ if one checks the IP address octets IP_1, IP_2, IP_3 and IP_4. This means
that the drive is still trying to acquire an IP address from the dHCP server. To
obtain the PositionServo drive’s IP address automatically, there must be a dHCP
server available.
6.4.1.3 Set the PC’s IP Address
Follow these steps to set up the PC’s IP address:

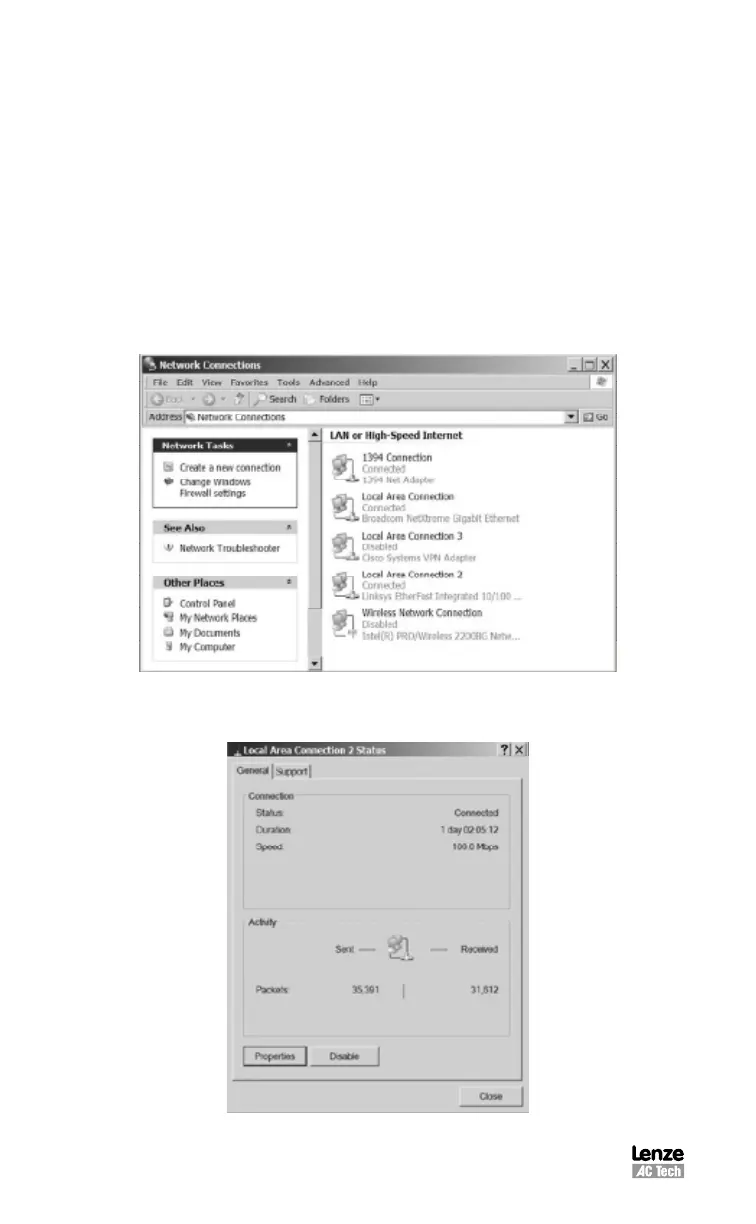

To display the IP address of your PC, from the Start menu, select “Control Panel”
and then select “Network Connections”.
Select the connection you wish to set: “Local Area Connection”, the PC Default
Port or “Local Area Connection x” your additional Ethernet port. Then double-
click the icon to open the [Connection Status] details.
