Commissioning
Setting options via switches
4
EDK82ZAFVC010 DE/EN/FR 2.0
59
l
H1inbet−reihenfolge einhalten
Baud rate setting
) Note!
The baud rate must be the same for all devices and the scanner.
ON
16274385 910
ON
OFF

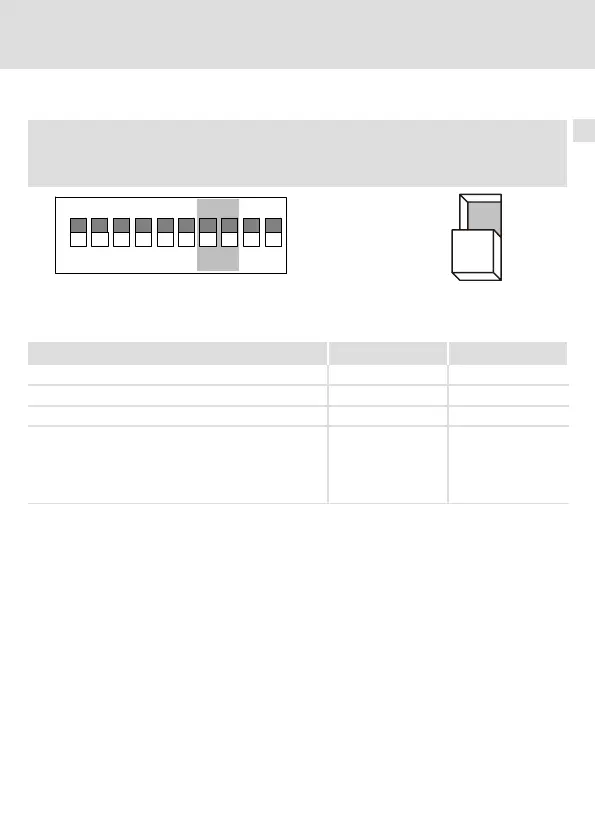

Fig. 3 Baud rate setting
Baud rate [kbit/s] S7 S8
125 OFF OFF
250 OFF ON
500 ON OFF
Setting baud rate (and address) via software
configuration
The baud rate can be set
l manually via software or
l automatically detected.
ON ON
