Lenze E70ACPSE Series User Manual

Electrical installation
Axis modules
6
l
109
EDS700ACBA EN 5.1
Double axis module
"
"
M
3~
+
PE WV
U
+
"
X107
(B)
...
R
B
"
M
BD1
BD2
B
X106
DI1
DI2
GD
B
X2
SIBGSSIA
B
X1
SIBGSSIA
X1
DC 24 V
(+19.2...
+28.8 V)
DI1
DI2
GD
X2
+
-
... n
X3
X3
DC 24 V
(+19.2...+28.8 V)
GE
24E
-
+
DC 24 V
(+19.2...
+28.8 V)
+
-
2
X4
X5
...
R
R
DC 24 V
4
X105
24E
GE
+
-
"
M
BD1
BD2
X106
"
+
PE WV
U
X108
"
"
M
3~
+
-UG -UG
+UG+UG
E70AC ...M1
3
R
A
A
(A)
A
A
...2
i700S0012 B

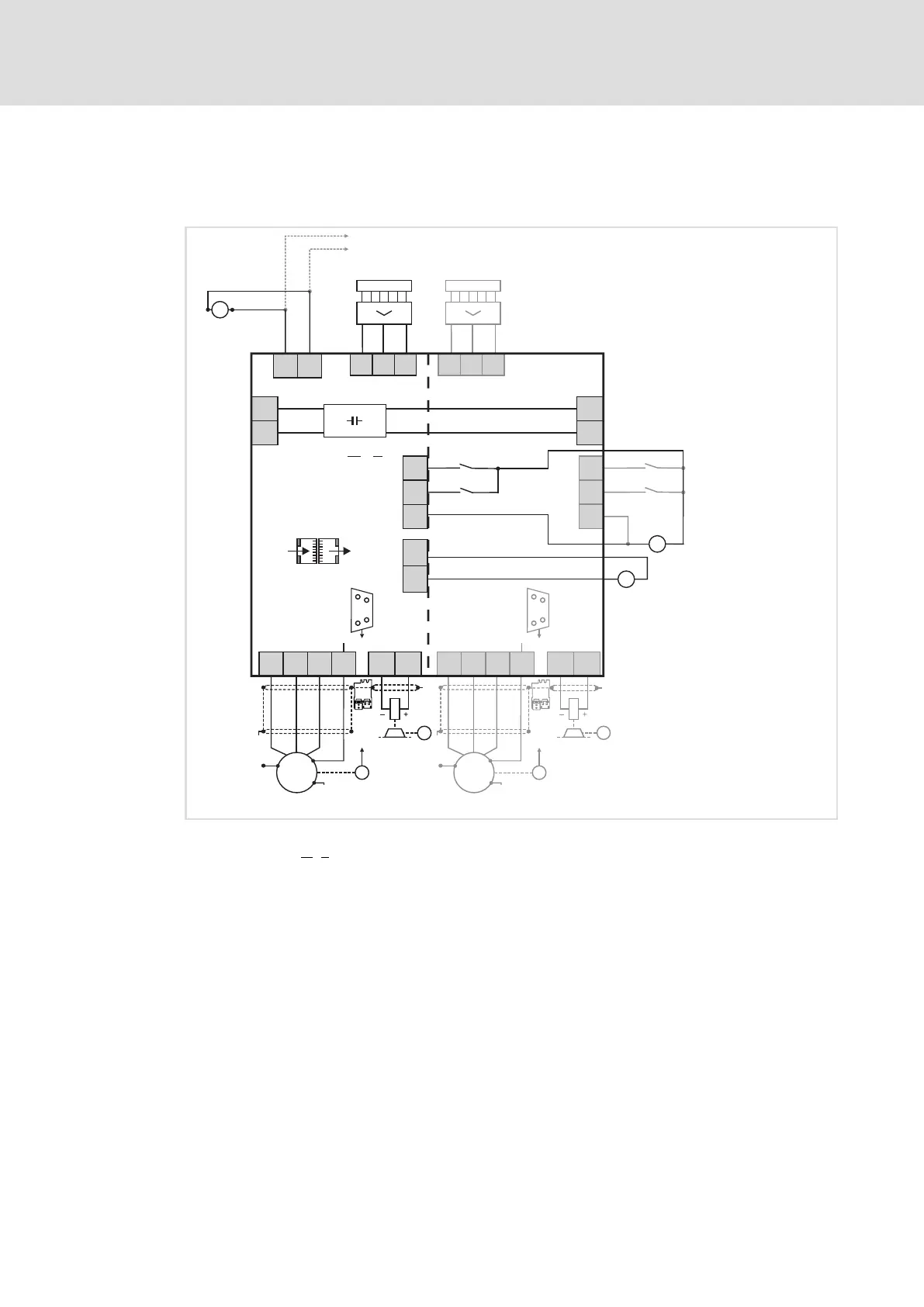

Fig. 12 Basic circuit diagram − axis modules
E70ACM
...2 i700 double axis module "doube inverter" − motor A and motor B
...n Other i700 axis modules
 24−V supply of control electronics
 24−V supply of digital inputs
 24−V supply of motor holding brake(s)
R Servo control feedback (X7 = resolver or X8 = encoder)
