Product description
Identification
3
l
24
EDS700ACBA EN 5.1
3.3 Identification
The type data used in this manual refer to the nameplate which is placed at the front of the
controller (Fig. 3−1).
l
L
i700
s
1234567890
Type
Ser.No.
Output A
Output B
Input
HW
SW
i700
'
{
|
}
J
Q
A
D
E
F
G
H
I
B
C
i700A001

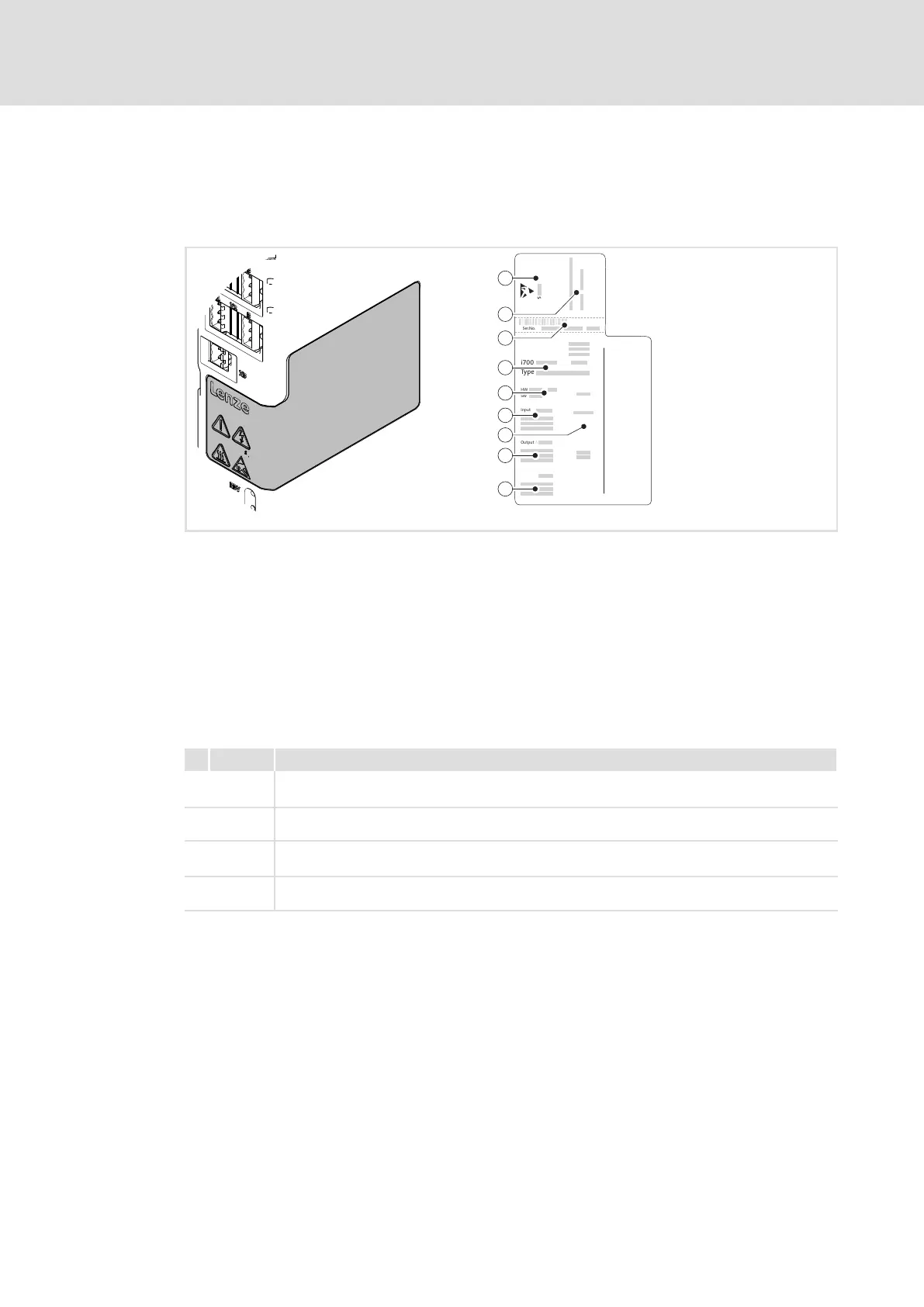

Fig. 3−1 Contents and position of the nameplate
A Notes and warning symbols 2
B Product designation at the front
C Serial number
D Product designation at the side
E Hardware and/or software version
F Rated input power
G Conformity and approval identification
H Rated output power (power supply module or motor (A))
I Rated output power (for 2−axis modules: motor B)
2 Icon Description
{
Long discharge time: All power terminals remain live for a few minutes after mains
disconnection! The duration is given under the warning symbol on the device.
}
High leakage current: Carry out fixed installation and PE connection according to EN 61800−5−1!
'
Electrostatic sensitive devices: Before working on the device, the personnel must be free of
electrostatic charge!
|
Hot surface: Risk of burns! Hot surfaces should not be touched without wearing protective
gloves.
