Mechanical installation
Devices with push−through design
5
l
76
EDS700ACBA EN 5.1

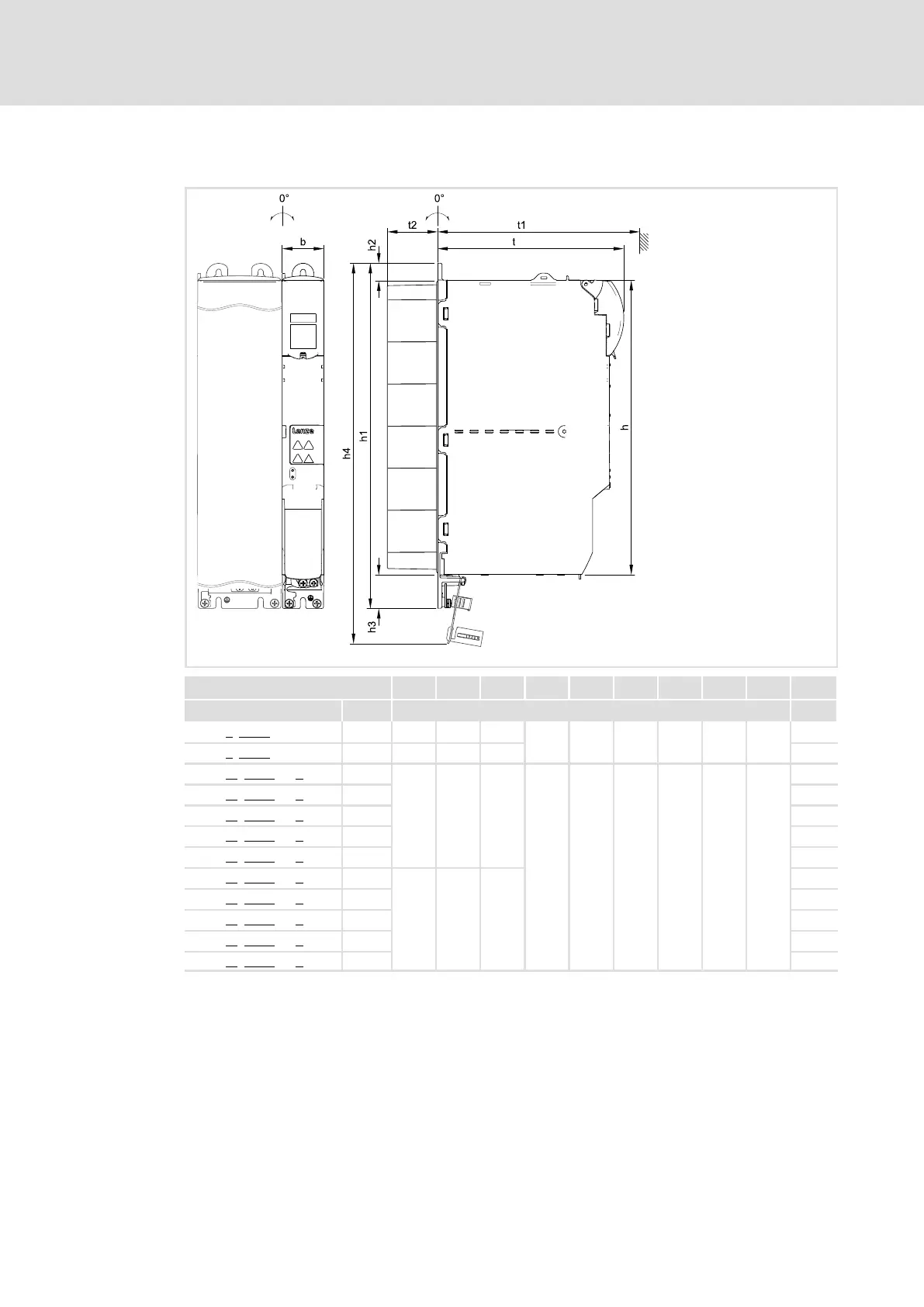

5.3.5 Devices with push−through design
i700P011 c
h b t h1 h2 h3 h4 t1 t2
[A] [mm] [kg]
E70ACPSD0304x 30 350 50 221
410 20 40 452 235 60
2.8
E70ACPSD0604x 60 350 100 221 7.3
E70ACMxD0054xx1xxx 5
350 50 221
410 20 40 452 235 60
3.0
E70ACMxD0104xx1xxx 10 3.0
E70ACMxD0204xx1xxx 20 3.0
E70ACMxD0054xx2xxx 2 * 5 3.2
E70ACMxD0104xx2xxx 2 * 10 3.2
E70ACMxD0324xx1xxx 32
350 100 221
7.1
E70ACMxD0484xx1xxx 48 7.1
E70ACMxD0644xx1xxx 64 7.1
E70ACMxD0204xx2xxx 2 * 20 7.1
E70ACMxD0324xx2xxx 2 * 32 7.1
