Lenze E70ACPSE Series - Components for Operation in the DC−Bus Connection

Accessories (overview)
Components for operation in the DC−bus connection
11
l
154
EDS700ACBA EN 5.1
11.7 Components for operation in the DC−bus connection

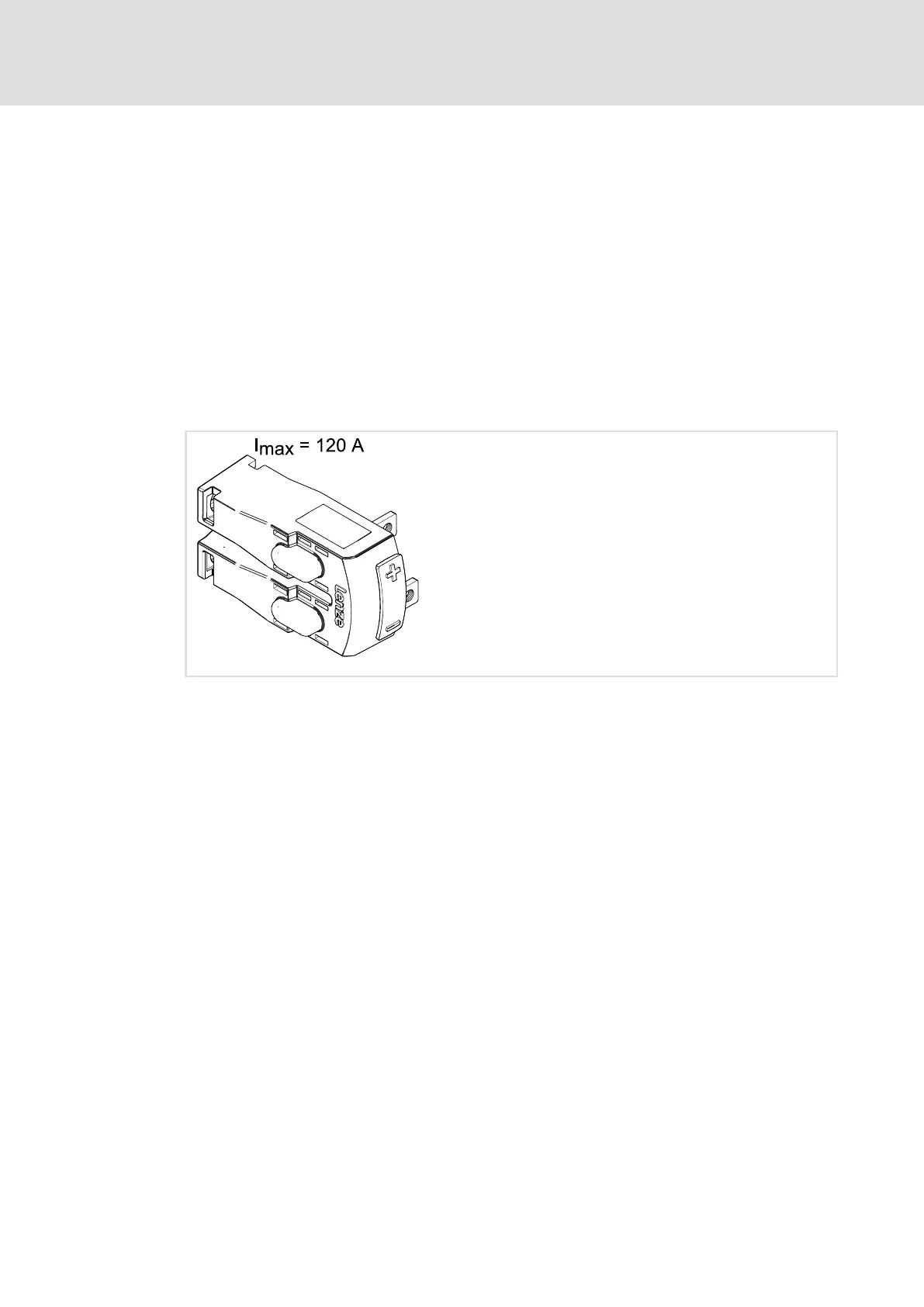

The E70AZEVE001 DC terminal is adapted to the i700 series.
By means of the DC terminal, a connection to the busbar system of the DC bus can be
established using a cable.
ƒ Distribution of the installation to several rows, groups, or control cabinets.
ƒ Energy exchange, e.g. with external DC−energy storage mechanisms.
ƒ Provides for cable cross−sections £ 35 mm
2
or 2 x £ 25 mm
2
.
ƒ Ensures protection against contact.
ƒ Mounting can be carried out on the left or right.
E70AZE000 b
