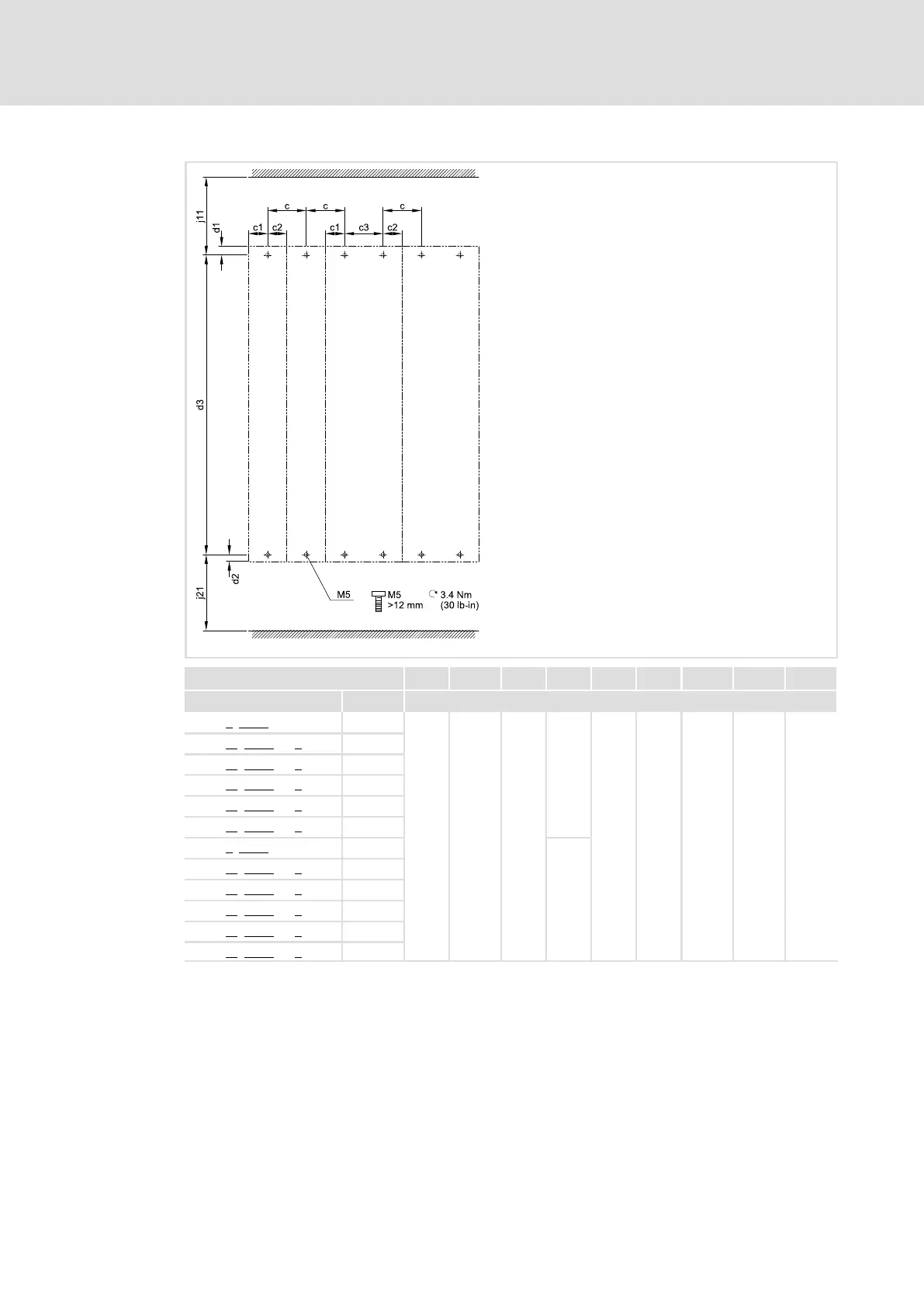

Mechanical installation
Dimensions
Mounting in "cold plate" technique
5
l
72
EDS700ACBA EN 5.1
i700S00x
c c1 c2 c3 d1 d2 d3 j11 j21
[A] [mm]
E70ACPSC0304x 30
50 25 25
−
10 10 390 90 70
E70ACMxC0054xx1xxx 5
E70ACMxC0104xx1xxx 10
E70ACMxC0204xx1xxx 20
E70ACMxC0054xx2xxx 2*5
E70ACMxC0104xx2xxx 2*10
E70ACPSC0604x 60
50
E70ACMxC0324xx1xxx 32
E70ACMxC0484xx1xxx 48
E70ACMxC0644xx1xxx 64
E70ACMxC0204xx2xxx 2*20
E70ACMxC0324xx2xxx 2*32
