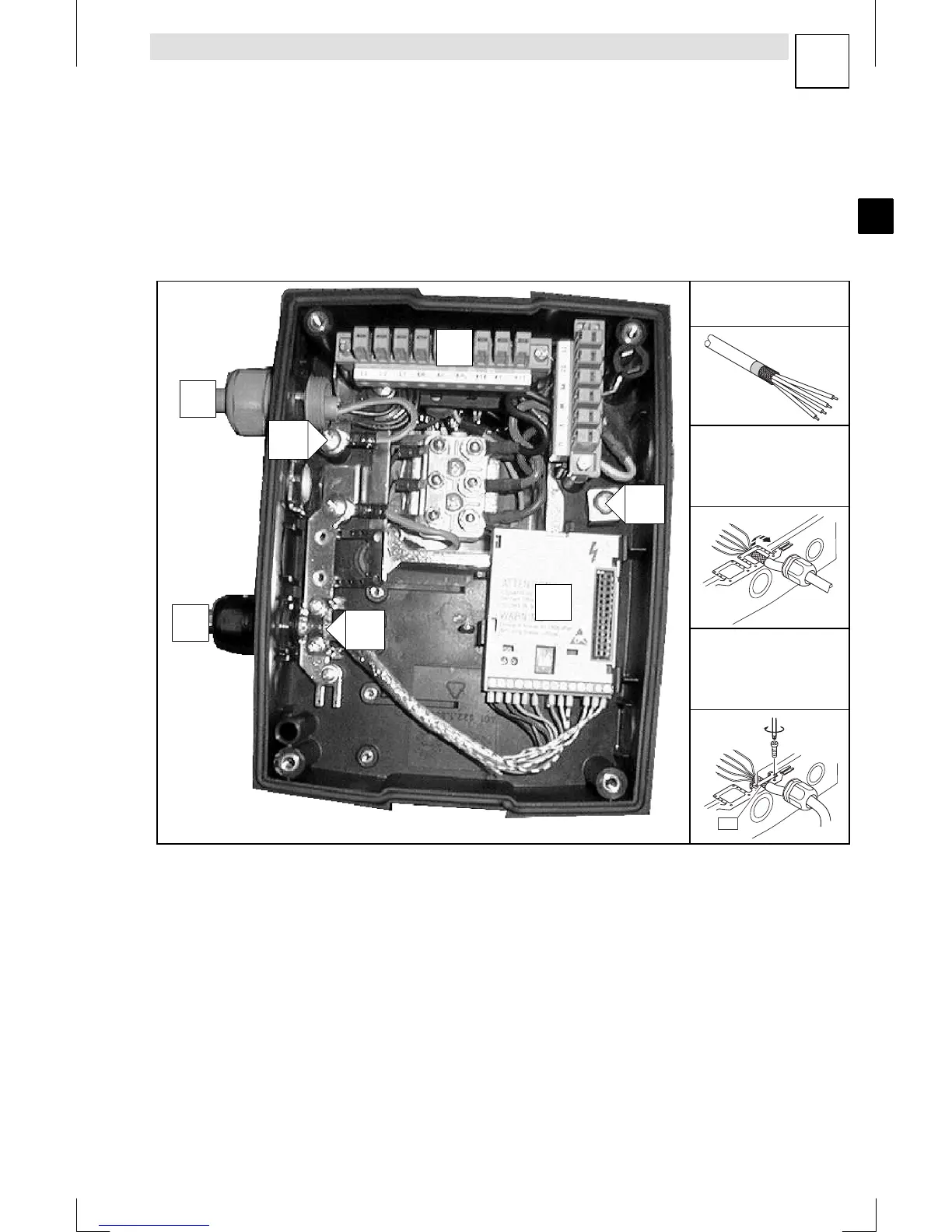

motec with motor or geared motor
Wiring according to EMC requirements
P
EDK82MV222 DE/EN/FR 9.0
UV
L
`çåÇáíáçåë Ñçê íêçìÄäÉ JÑêÉÉ çéÉê~íáçåW
z bñÅÉéí Ñçê íÜÉ ã~áåë Å~ÄäÉI ìëÉ ëÜáÉäÇÉÇ Å~ÄäÉë çåäóK
z qÜÉ ëÜáÉäÇ ãìëí ÄÉ Å~êÉÑìääó ÅçååÉÅíÉÇ íç mbK
z `çååÉÅí ãçíçê ~åÇ ã~áåë mb ÅçåÇìÅíçêë íç ëÉé~ê~íÉ mb íÉêãáå~äëK
8200mot101
^
b
_
uN
`
a
c
Shield connection
1. Prepare cable
2. Route the cable
through the eyebolt
of the shield and
bend the eyebolt.
3. Tighten the screw.
The shield must be
tightly connected to
the shield sheet.
0.7 Nm
6 lb-in
PES
Mains cable L1, L2, L3, PE
PE connection - mains cable
Shielded control cable
Shield connection for control cable (screw shield to shield sheet)
Function module
Isolated terminal (e. g. star point for motor star connection)
X1 Terminal strip - mains connection
PES HF shield connection by connecting the shield with a surface as large as possible to PE
