Motor mounting
Preparations
P
EDK82MV222 DE/EN/FR 9.0
VT
L
cáÖK U
5mm
68-73mm
68-73mm
1a
2a
1 × M20 (E82MV152/
E82MV222)
× M16
2 × M25
4
0
1a
1a
2a
3
1
2
3
5a
3.4 Nm
30 lb-in
8200mot007

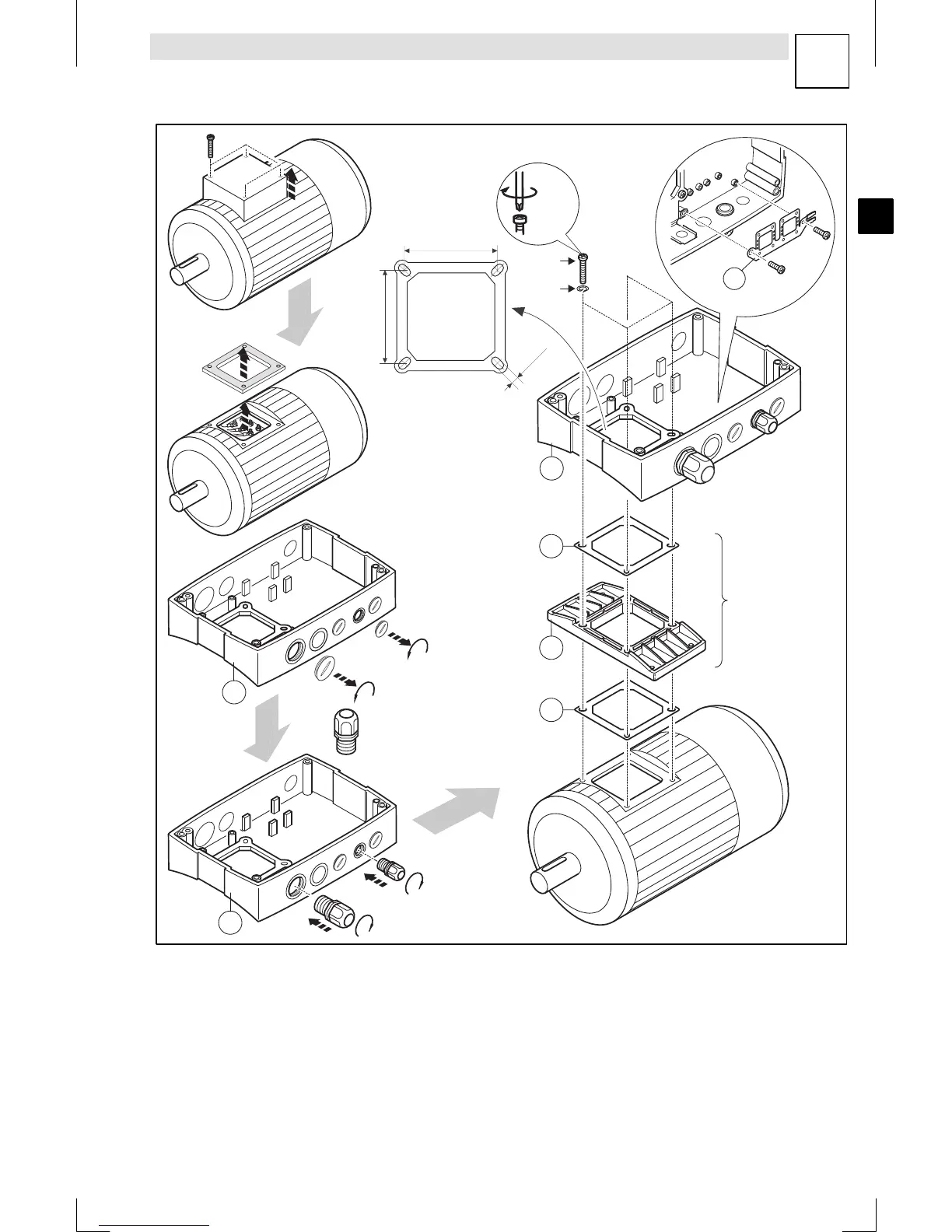

Preparing the motor:
z Terminal box seal and motor terminal board must be removed.
z If necessary, extend the motor cable.
Mount the housing base to the motor:
z The mounting and fixing must ensure a permanently tight mechanical connection. (DIN 6798).
z If distance required: Use (2a), (3) and screw 35 mm (DIN 7985) (without :onlyscrew20mm(DIN
7985))
Perfect sealing is required to ensure enclosure IP65.
