Wall mounting

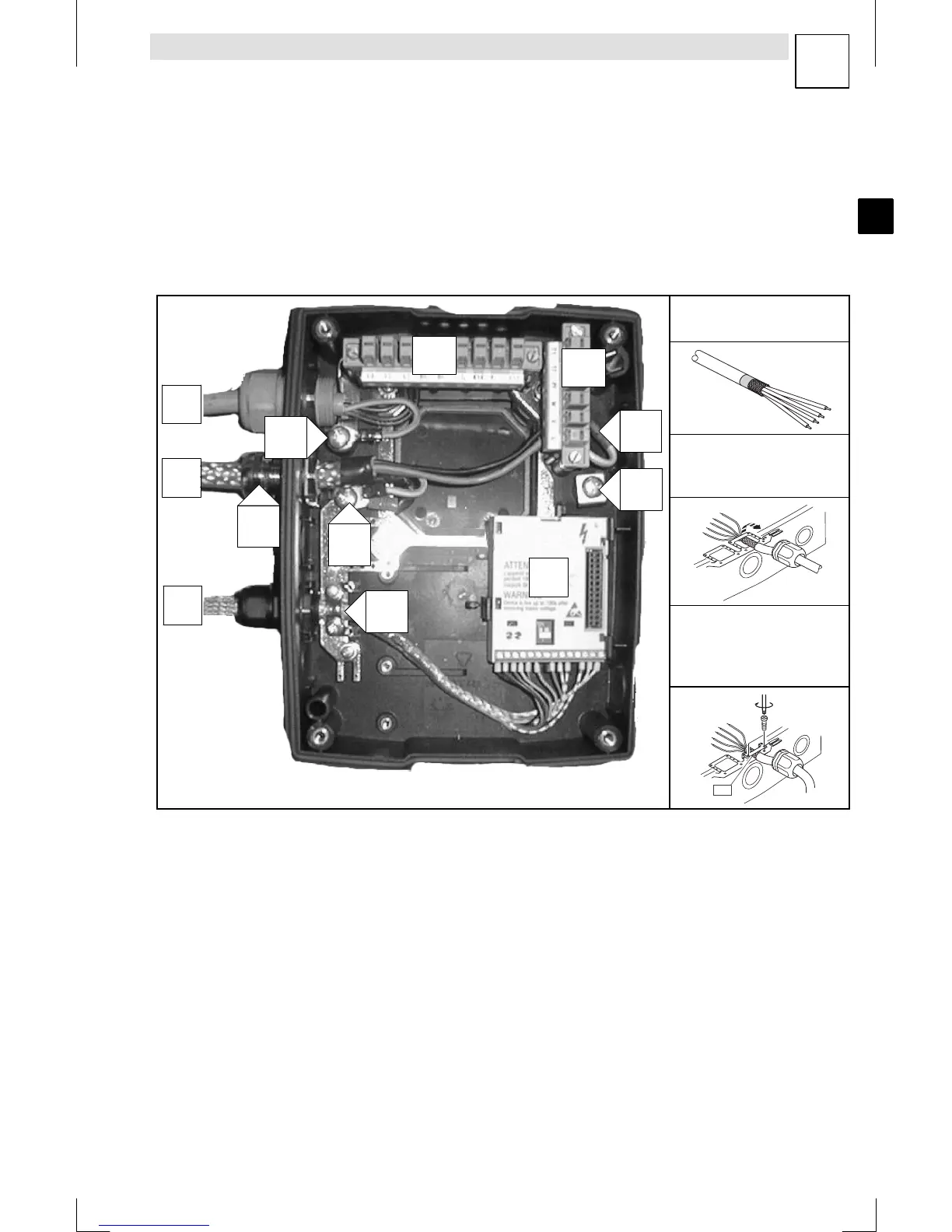

Wiring according to EMC requirements
P
EDK82MV222 DE/EN/FR 9.0
VR
L
`çåÇáíáçåë Ñçê íêçìÄäÉ JÑêÉÉ çéÉê~íáçåW
z bñÅÉéí Ñçê íÜÉ ã~áåë Å~ÄäÉI ìëÉ ëÜáÉäÇÉÇ Å~ÄäÉë çåäóK
z qÜÉ ëÜáÉäÇ ãìëí ÄÉ Å~êÉÑìääó ÅçååÉÅíÉÇ íç mbK
z pÉé~ê~íÉ Åçåíêçä ~åÇ ã~áåë Å~ÄäÉë Ñêçã ãçíçê Å~ÄäÉ>
z `çååÉÅí ãçíçê ~åÇ ã~áåë mb ÅçåÇìÅíçêë íç ëÉé~ê~íÉ mb íÉêãáå~äëK
^
`
c
_
b
f
uN
8200mot100
g
cáÖK S
d
e
a
uO
Shield connection
1. Prepare cable
2. Route the cable through
the eyebolt of the shield
and bend the eyebolt.
3. Tighten the screw. The
shield must be tightly
connected to the shield
sheet.
0.7 Nm
6 lb-in
PES
Mains cable L1, L2, L3, PE
PE connection - mains cable
Use shielded motor cable (use low capacity motor cables)
EMC cable connection for motor c ables
PE connection - motor cable
Shielded control cable
Shield connection for control cable (screw shield to shield sheet)
PE connection - terminal strip X2
Isolated terminal (e.g. star point for motor star connection)
Function module
X1 Terminal strip - mains connection
X2 Terminal strip - motor connection
PES HF shield connection by connecting the shield with a surface as large as possible to PE
