Lenze E82MV551_4B Mounting Instructions

P
Wall mounting

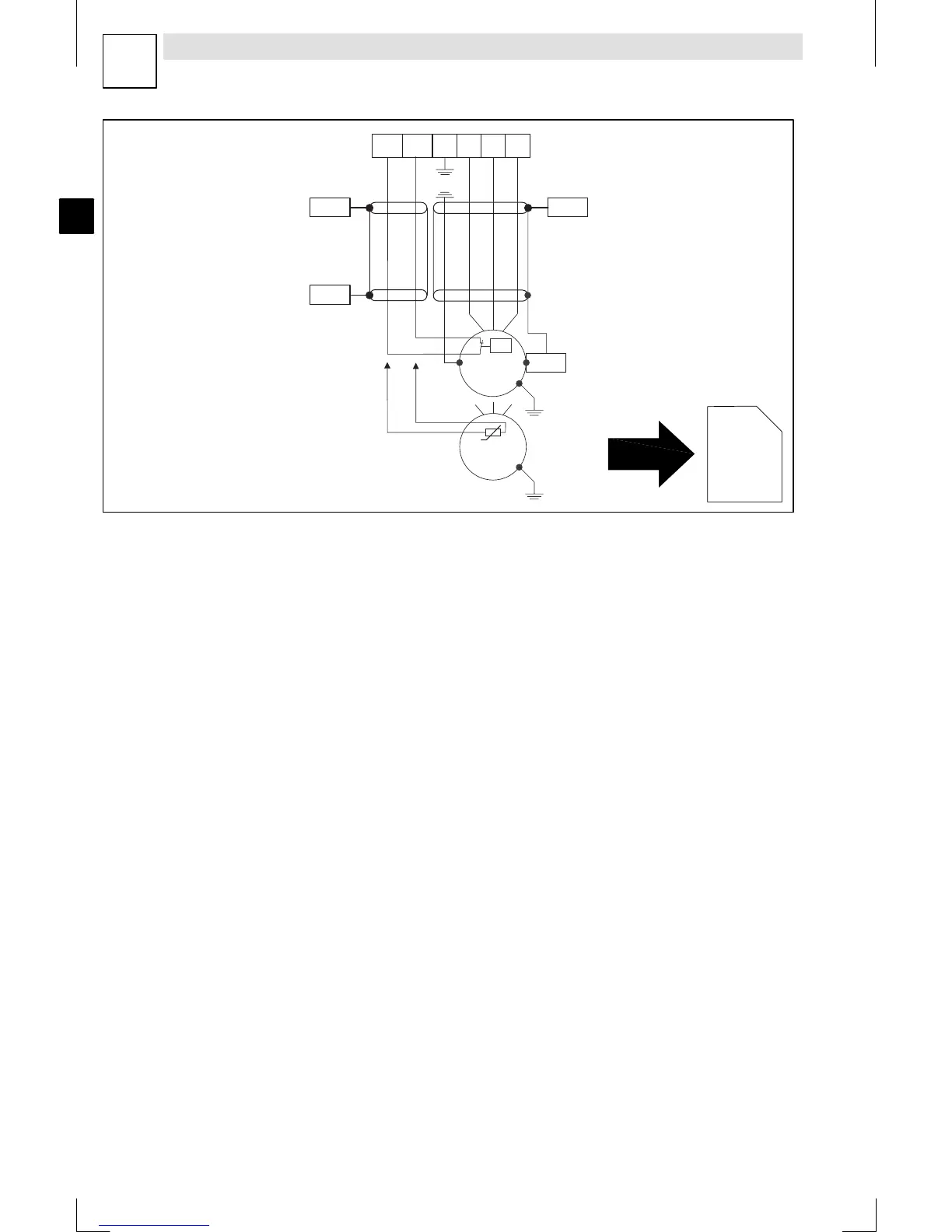

Motor connection
EDK82MV222 DE/EN/FR 9.0
L
VQ
8200mot168
100
PESPES
PES
PE
U
V W
PE
X2
PES
T1
T2
M
3~
J>
M
3~
PTC
PES HF shield connection by PE connection to the shield (  95 ) or motor EMC connection.
X2/T1,
X2/T2
Connection terminals motor temperature monitoring with PTC thermistor or thermal contact (NC
contact).
Activate motor temperature monitoring with C0119 (e. g. C0119 = 1)!
