Mechanische Installation
Montage
4
15
EDK84DGDVBxxx4 DE/EN/FR/ES/IT 3.1
4.2 Montage

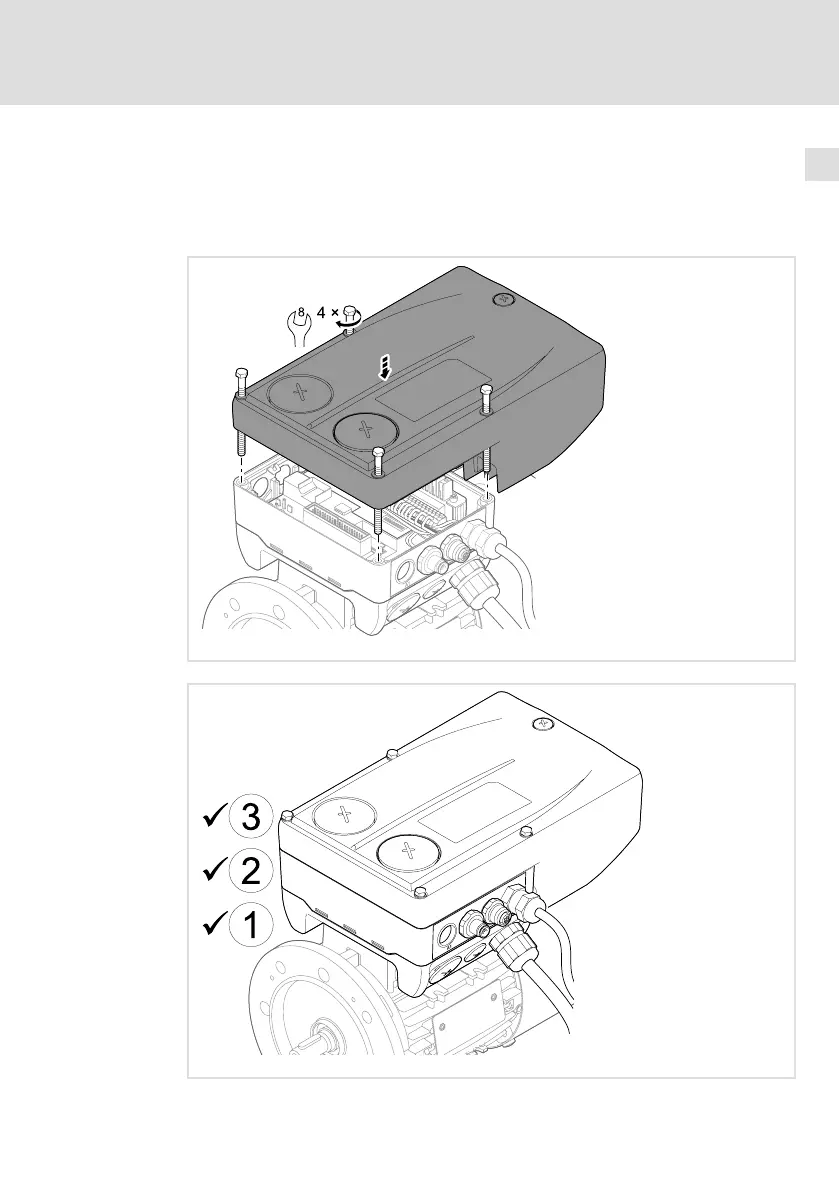

Setzen Sie die Drive Unit −ohne zu verkanten− auf die vorher montierte Commu-
nication Unit auf. Befestigen Sie die Drive Unit mit den gelieferten vier
Schrauben (Drehmoment: 5.0 Nm/44 lb−in).
E84DG043
E84DG042
