Settings
Setting with the diagnosis terminal (keypad)
Measures when drive is used in IT systems
6
47
EDK84DGDVBxxx4 DE/EN/FR/ES/IT 3.1
6.3 Measures when drive is used in IT systems
If the drive is installed in an IT system, internal filters must be separated from
the PE conductor.

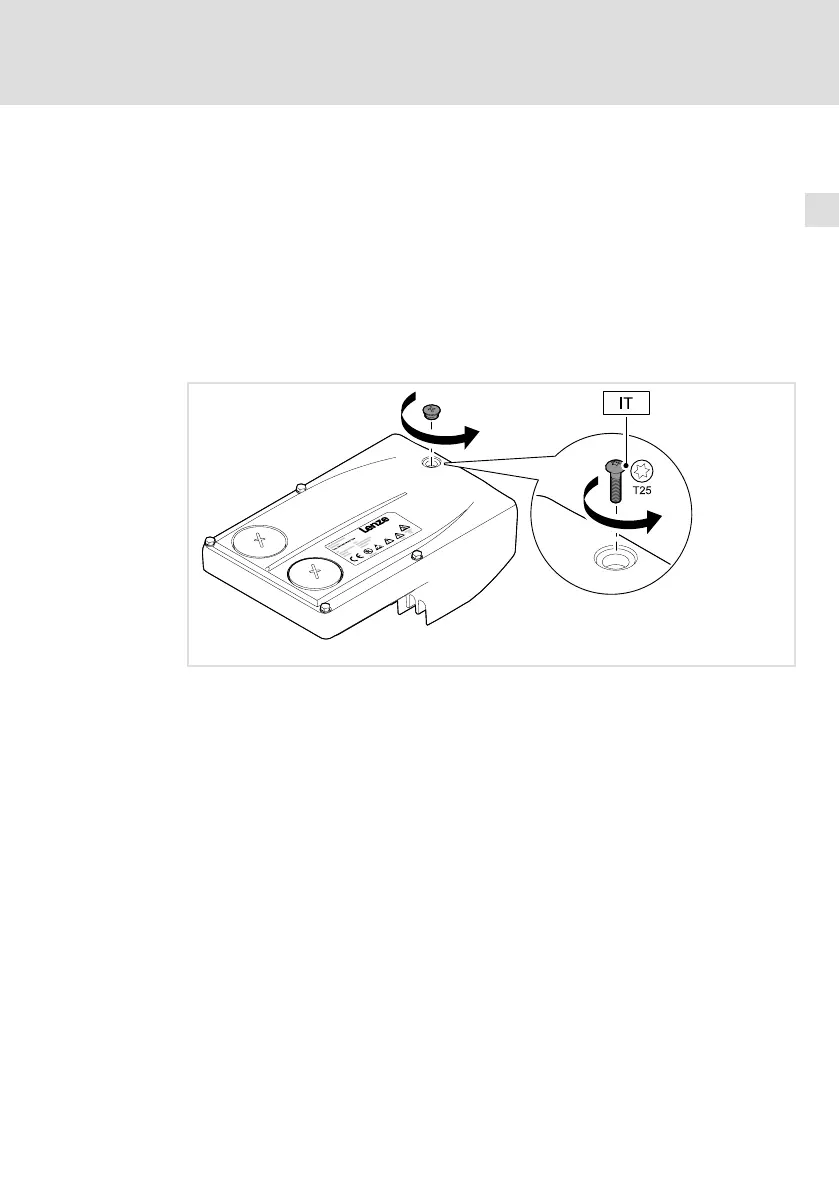

How to proceed:
1. With a controller already mounted: Switch off mains voltage!
2. Remove the small cap on the top.
3. Unscrew and remove the screw.
4. Screw in cap.
IT system
E84DG046
