Commissioning
Entry of motor data for Lenze motors
6
110
EDBCSXA064 EN 3.2
ECSXA302

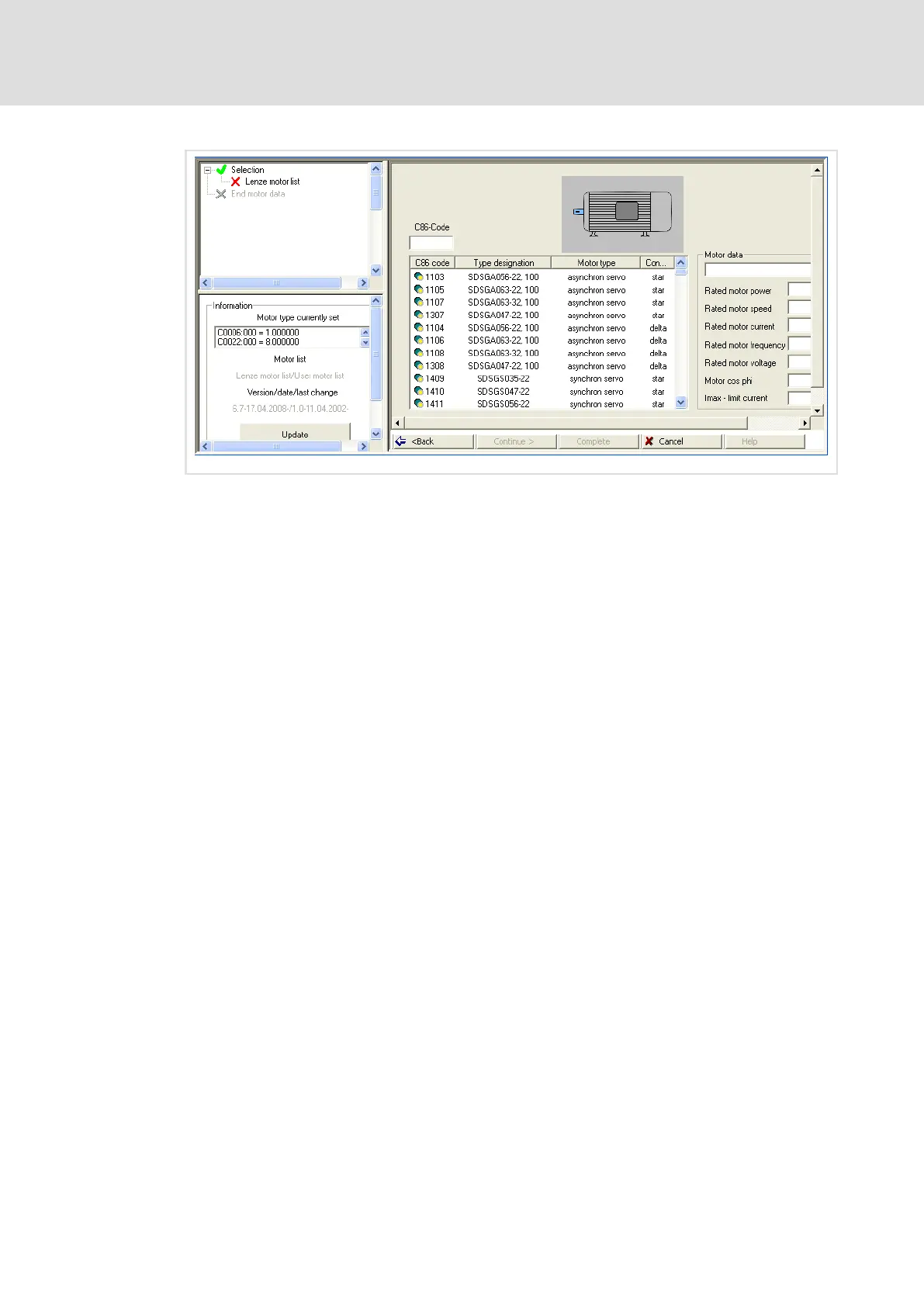

Fig. 6−5
GDC view: Motor selection
3.
Select the connected motor from the list (see motor nameplate).
–
The corresponding motor data is displayed in the "Motor data" fields on the right.
4.
Click the [ Complete ] button.
–
The data is transferred to the controller. This process can take a few seconds and is
confirmed by a message after being completed.
