AIF2_IO_AutomationInterface (node number 42)
Outputs_AIF2
13

269
EDBCSXA064 EN 3.2
13.3.2 Outputs_AIF2
This SB is used as an interface for output signals (e.g. setpoints/actual values) to attached
fieldbus modules (e.g. INTERBUS, PROFIBUS−DP).
The process image is
ƒ created in the cyclic task by means of a fixed set time interval of 10 ms.
ƒ created in an interval task within the time set for this task.
ƒ read at the beginning of the task and written at its end.
 Please read the documentation for the connected fieldbus module.
...
Byte
1
Byte
2
Byte
3
Byte
4
Byte
5
Byte
6
Byte
7
Byte
8
...
16 bits
Low Word
16 bits
High Word
16 bits
16 binary
signals
16 bits
16 binary
signals
16 bits
16 bits
X1
Outputs_AIF2
AIF2_nOutW2_a
AIF2_nOutW1_a
AIF2_bFDO0_b
AIF2_bFDO15_b
AIF2_bFDO16_b
AIF2_bFDO31_b
AIF2_nOutW4_a
AIF2_dnOutD1_p
AIF2_nOutW3_a
ECSXA204

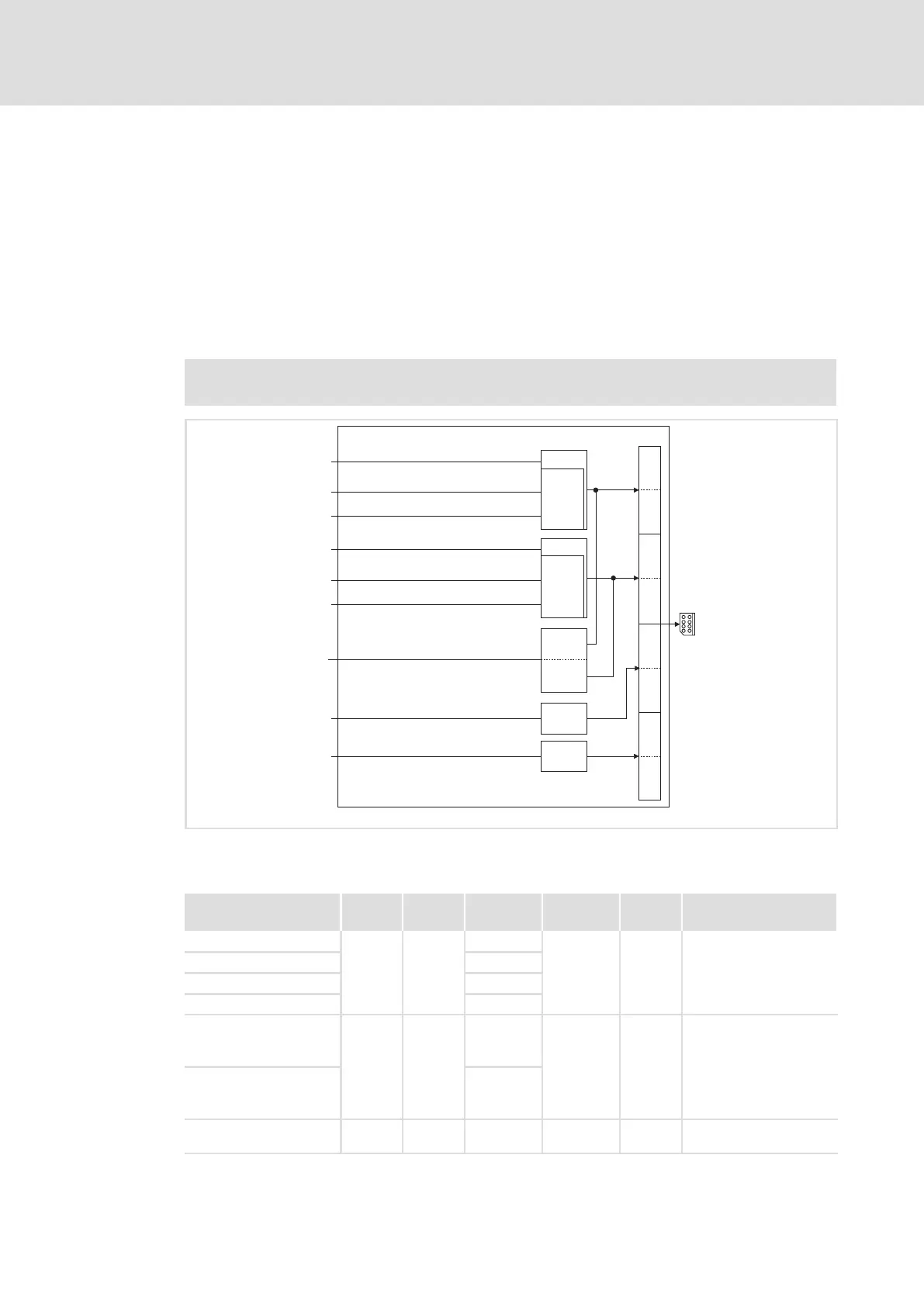

Fig. 13−6 System block "Outputs_AIF2"
System variables
Variable Data
type
Signal
type
Address Display
code
Display
format
Notes
AIF2_nOutW1_a
Integer
analog
%QW42.0
˘ ˘
AIF2_nOutW2_a %QW42.1
AIF2_nOutW3_a %QW42.2
AIF2_nOutW4_a %QW42.3
AIF2_bFDO0_b
...
AIF2_bFDO15_b
Bool binary
%QX42.0.0
...
%QX42.0.15
˘ ˘
AIF2_bFDO16_b
...
AIF2_bFDO31_b
%QX42.1.0
...
%QX42.1.15
AIF2_dnOutD1_p
Double
Integer
position %QD42.0 ˘ ˘
