Electrical installation
Ethernet connection
6
EDKMF2180 DE/EN/FR/ES/IT 3.0 51

H1_E_INST-SteckerFederkraftAnschluss FKCT

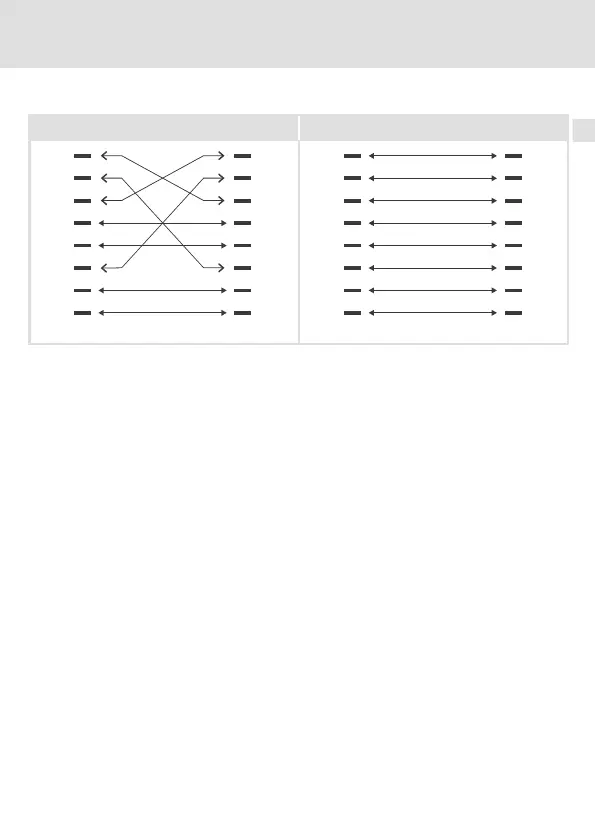

Pin assignment
100BaseTX - CrossOver Cable 100BaseTX - Standard Patch Cable
1Tx+ Tx+1
2Tx- Tx-2
3Rx+ Rx+3
4 4
5 5
6Rx- Rx-6
7 7
8 8
1Tx+ Tx+1
2Tx- Tx-2
3Rx+ Rx+3
4 4
5 5
6Rx- Rx-6
7 7
8 8
E94YCEI002
Use of cables
ƒ The ”100BaseTX - CrossOver Cable” is used for direct coupling of PC and
communication module.
ƒ The ”100BaseTX - Standard Patch Cable” is used in conjunction with hubs and
switches.
