6 Electrical installation
Ethernet connection
EDKMF2180 DE/EN/FR/ES/IT 3.0 50

H1_E_INST-SteckerFederkraftAnschluss FKCT

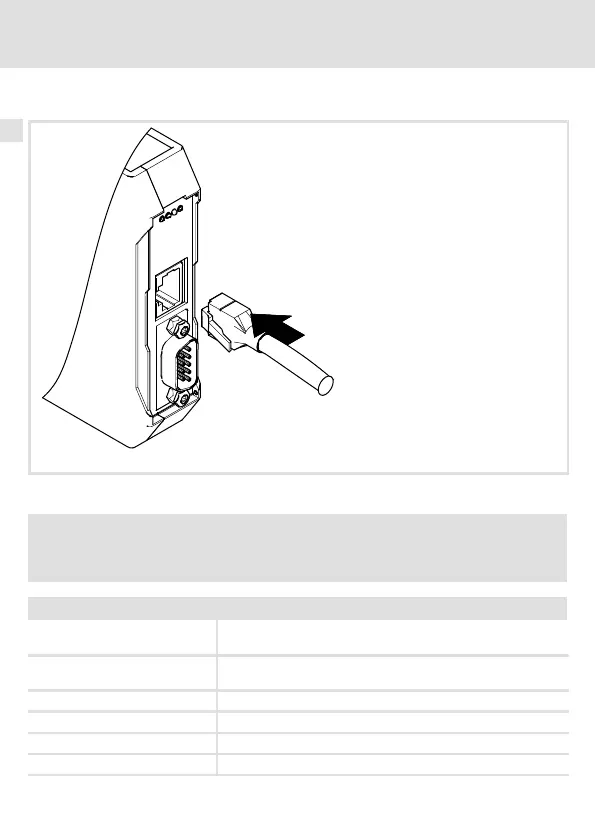

Ethernet connection
2181FEW004A
Specification of the transmission cable
 Note!
Only use cables complying with the below specifications.
Specification of the Ethernet cable
Ethernet standard Standard Ethernet (in accordance with IEEE 802.3), 100Base-TX
(Fast Ethernet)
Cable type S/FTP (Screened Foiled Twisted Pair, ISO/IEC 11801 or EN 50173),
CAT 5e
Damping 23.2 dB (at 100 MHz and per 100 m)
Crosstalk damping 24 dB (at 100 MHz and per 100 m)
Return loss 10 dB (per 100 m)
Surge impedance
100 Ω
