Technische Daten
Abmessungen
2

18
EDBPM−H505 DE/EN/FR 6.1

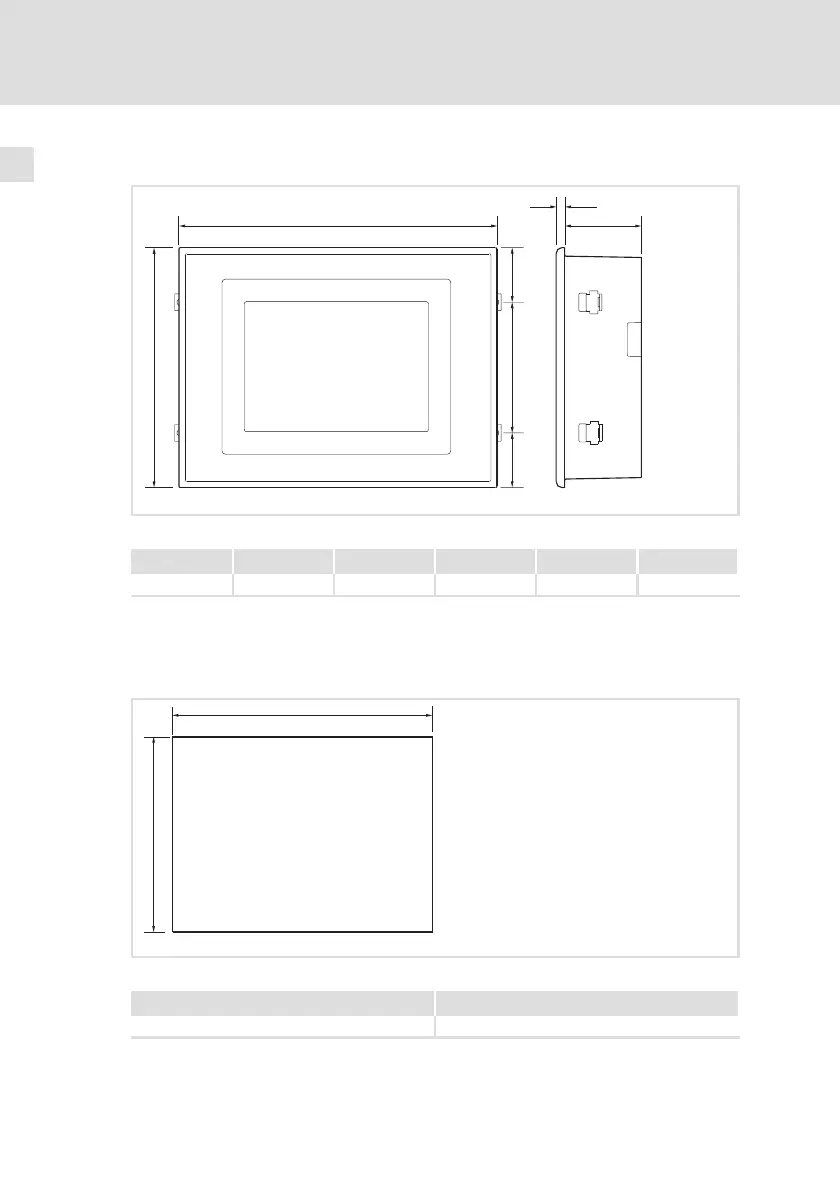

2.3 Abmessungen
a
d
e
c
f
c
b
h505_006
Abb. 2−2 Abmessungen
a [mm] b [mm] c [mm] d [mm] e [mm] f [mm]
210 158 36 6 54 86
2.4 Einbauausschnitt
a
b
h505_007
Abb. 2−3 Einbauausschnitt
a [mm] b [mm]
198 148

Lenze EPM-H505 Specifications

General

Product series	EPM
Type	Control Unit
Model Number	EPM-H505
Input voltage	24 VDC
Output current	5 A
Power dissipation	10 W
Protection class	IP20
