Lenze Global Drive 8200 Series User Manual

Technical Data
820XBA1097 3-1
3Technicaldata

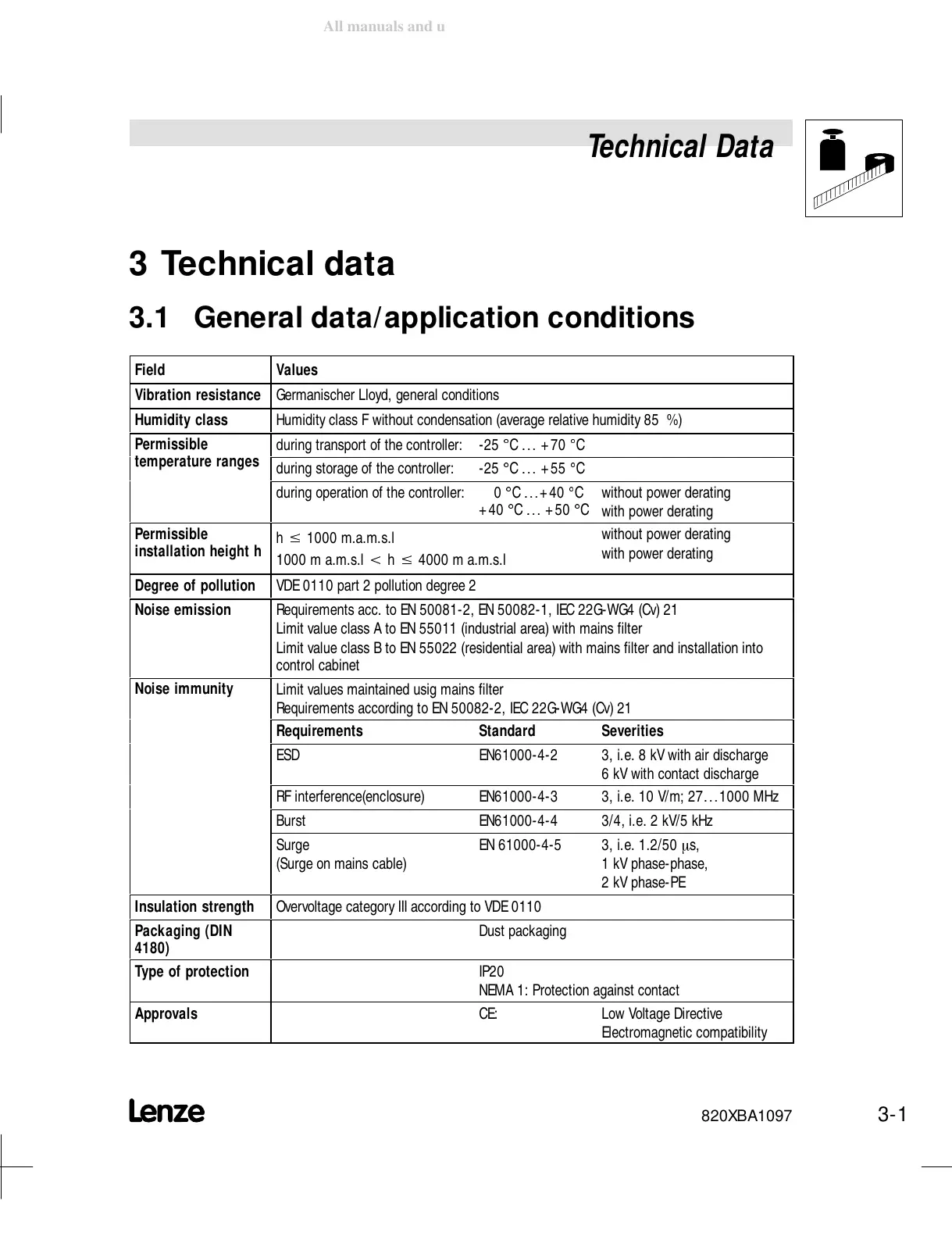

3.1 General data/application conditions
Field Values
Vibration resistance Germanischer Lloyd, general conditions
Humidity class Humidity class F without condensation (average relative humidity 85 %)
Permissible
t
e
m
p
e
r
a
t
u
r
e
r
a
n
g
e
s
during transport of the controller: -25  C ¤ +70  C
P
e
r
m
i
s
s
i
b
l
e
temperature ranges
during storage of the controller: -25  C ¤ +55  C
during operation of the controller: 0  C ¤ +40  C
+40
 C ¤ +50  C
without power derating
with power derating
Permissible
installation height h
h $ 1000 m.a.m.s.l
1000 m a.m.s.l
h $ 4000 m a.m.s.l
without power derating
with power derating
Degree of pollution VDE0110 part 2 pollution degree 2
Noise emission Requirements acc. to EN50081-2, EN50082-1, IEC 22G-WG4 (Cv) 21
Limit value class Ato EN55011 (industrial area) with mains filter
Limit value class B to EN55022 (residential area) with mains filter and installation into
control cabinet
Noise immunity
Limit values maintained usig mains filter
Requirements according to EN50082-2, IEC22G-WG4 (Cv) 21
Requirements Standard Severities
ESD EN61000-4-2 3, i.e. 8 kVwith air discharge
6 kV with contact discharge
RF interference(enclosure) EN61000-4-3 3, i.e. 10 V/m; 27 ¤ 1000 MHz
Burst EN61000-4-4 3/4, i.e. 2 kV/5 kHz
Surge
(Surge on mains cable)
EN61000-4-5 3, i.e. 1.2/50 ³ s,
1 kV phase-phase,
2 kV phase-PE
Insulation strength Overvoltage category III according to VDE0110
Packaging (DIN
4180)
Dust packaging
Type of protection IP20
NEMA 1: Protection against contact
Approvals CE: Low Voltage Directive
Electromagnetic compatibility
