Installation
820XBA1097 4-3
4.1.2 Standard assembly with fixing rails or fixing
angles
4.1.2.1 Types 8201 to 8204
g
Typ Id.-NR Fert.- Nr Serien-Nr. Eingang1 Eingang2
Lenze
Post fach10135 2,317 63HAMELN
c
k
a
e
db
1)
2)
3)
K35.0074

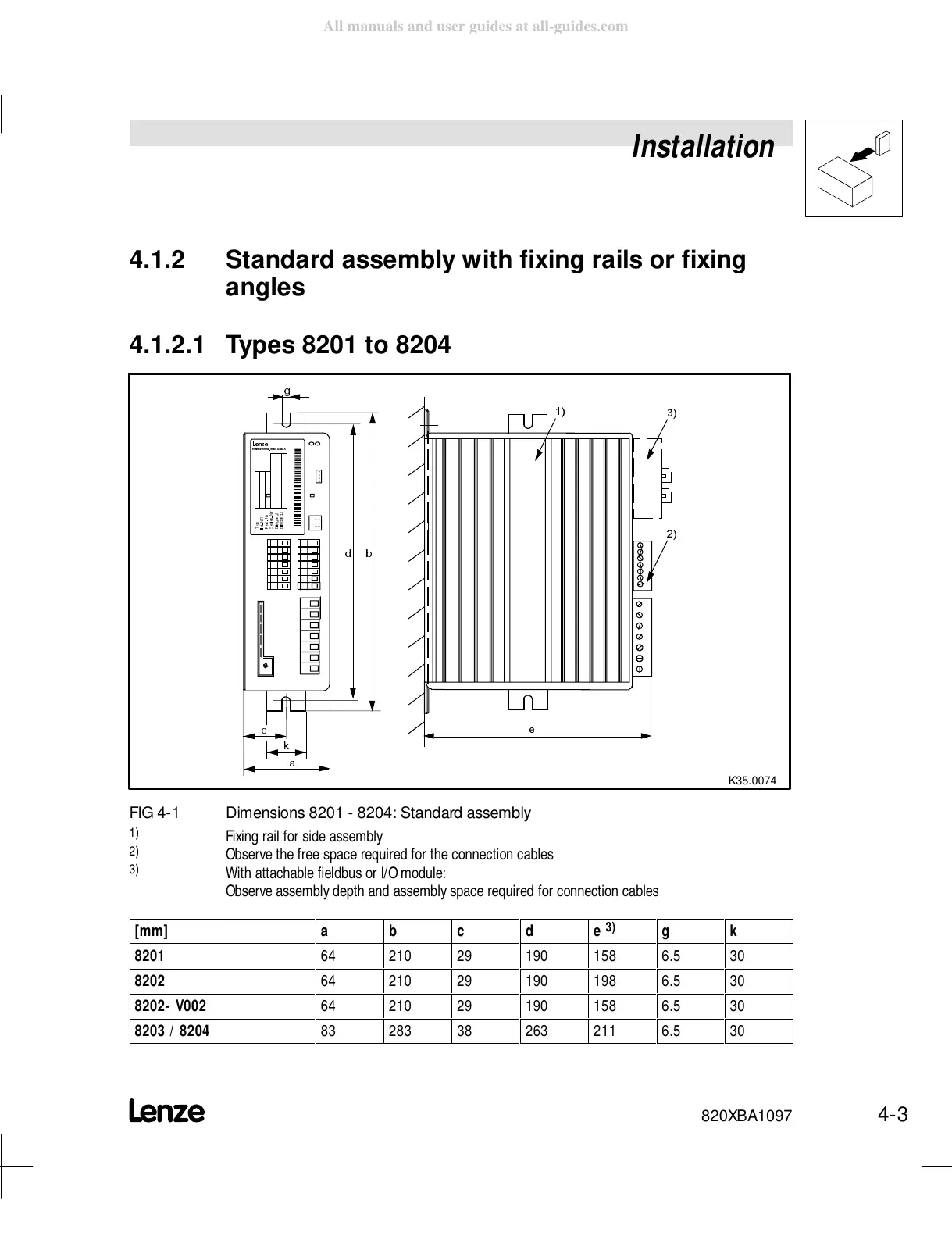

FIG 4-1 Dimensions 8201 - 8204: Standard assembly
1)
Fixing rail for side assembly
2)
Observe the free space required for the connection cables
3)
With attachable fieldbus or I/Omodule:
Observe assembly depth and assembly space required for connection cables
[mm]
a b c d e
3)
g k
8201 64 210 29 190 158 6.5 30
8202 64 210 29 190 198 6.5 30
8202- V002 64 210 29 190 158 6.5 30
8203 / 8204 83 283 38 263 211 6.5 30
