Lenze Global Drive EPM-H310 - Affectation de la Prise; Encombrements

Spécifications techniques
L
57
EDBEPM-H310 DE/EN/FR 2.0

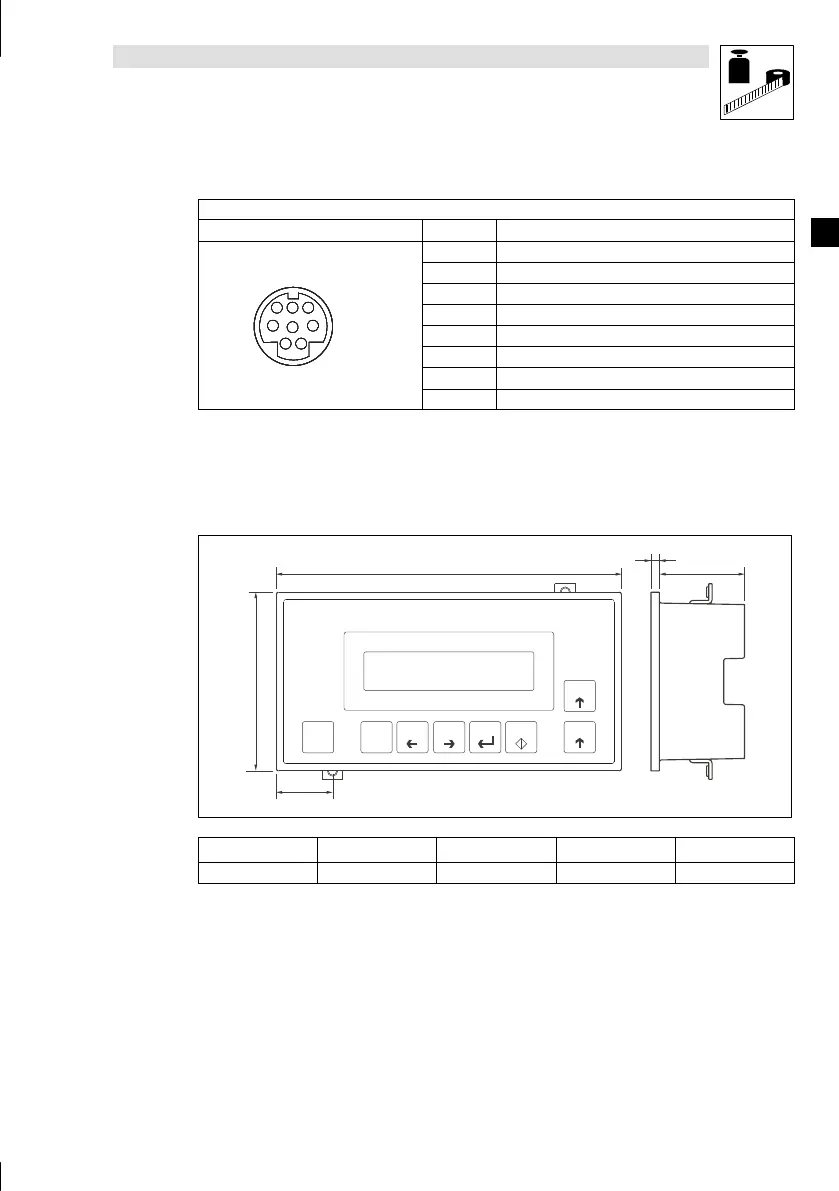

2.2.2 Affectation de la prise
ASP8
Prise Minidin 8 broches Broche Signal
12
3
4
5
678
H310_010
1 Rx RS232 IN
12
3
4
5
678
H310_010
2 Tx RS232 OUT
12
3
4
5
678
H310_010
3 N.C.
12
3
4
5
678
H310_010
4 RTS RS232 OUT
12
3
4
5
678
H310_010
5 CTS RS232 IN
12
3
4
5
678
H310_010
6 N.C.
12
3
4
5
678
H310_010
7 Signal GND
12
3
4
5
678
H310_010
8 +5 VCC (réserv é)
N.C. Non connecté
2.3 Encombrements
d
a
b
c
shift
F1
Esc
F2 F3 F4 F5
e
Help
Info
H310_001
a [mm] b [mm] c [mm] d [mm] e [mm]
166,0 86,0 27,0 4,0 41,0
