Mechanical installaon
Operang Instrucons i550 protec8
E2
E1
H
H1
B
B1
T
E2

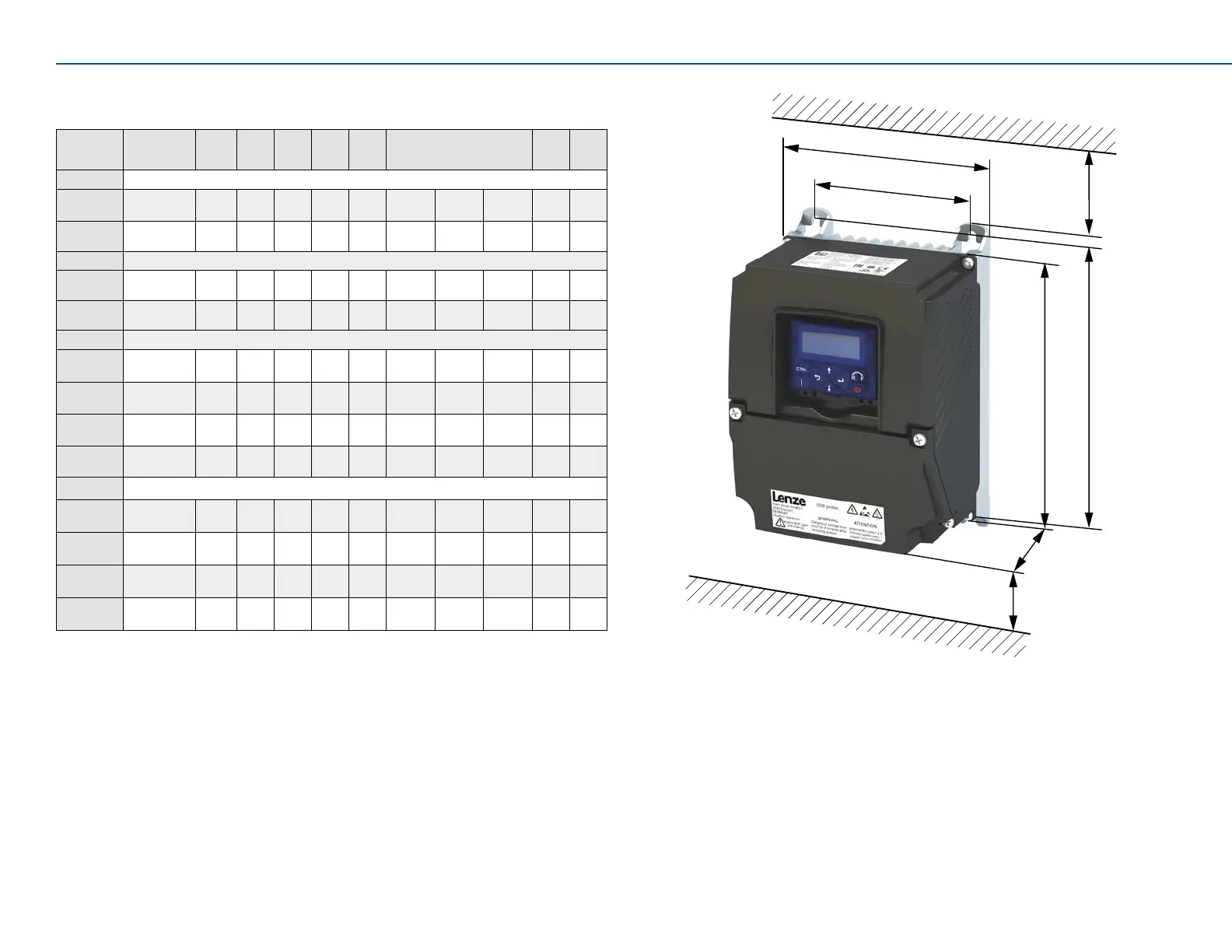

H: Device height B1: Hole spacing over center of device
B: Device width (Bottom screws not visible in the illustration)
T: Device depth E1: Top mounting clearance
H1: Hole dimension for top/bottom fixing E2: Bottom mounting clearance
4 Mechanicalinstallaon
4.1 Dimensions and assembly
Inverter
Rated power
hp
kW
Weight
lb
H
in
B
in
T
in
H1
in
B1 [screws + hole spacing]
in
E1
in
E2
in
1-phase mains connection 120-V devices
I55APxxxA
0.5
0.37
4 7.48 5.51 4.61 8.66 2/2 4.53 M5 >1.97 >1.97
I55APxxxA
1 ... 1.5
0.75 ... 1.1
6 8.07 5.51 5.51 9.25 2/2 4.53 M5 >1.97 >1.97
1-phase mains connection 230/240-V devices
I55APxxxB
0.5 ... 1
0.37 ... 0.75
4 7.48 5.51 4.61 8.66 2/2 4.53 M5 >1.97 >1.97
I55APxxxB
1.5 ... 3
1.1 ... 2.2
6 8.07 5.51 5.51 9.25 2/2 4.53 M5 >1.97 >1.97
1-/3-phase mains connection 230/240-V devices
I55APxxxD
0.5 ... 1
0.37 ... 0.75
3.7 7.48 5.51 4.61 8.66 2/2 4.53 M5 >1.97 >1.97
I55APxxxD
1.5 ... 3
1.1 ... 2.2
6 8.07 5.51 5.51 9.25 2/2 4.53 M5 >1.97 >1.97
I55APxxxC
4 ... 7.5
3 ... 5.5
10.6 9.84 7.09 6.61 10.51 2/2 5.91 M5 >1.97 >1.97
I55APxxxC
10 ... 15
7.5 ... 11
11 11.42 7.09 6.81 12.2 2/2 5.91 M5 >1.97 >1.97
3-phase mains connection 400/480-V
I55APxxxF
0.5 ... 1
0.37 ... 0.75
4 7.48 5.51 4.61 8.66 2/2 4.53 M5 >1.97 >1.97
I55APxxxF
1.5 ... 3
1.1 ... 2.2
6 8.07 5.51 5.51 9.25 2/2 4.53 M5 >1.97 >1.97
I55APxxxF
4 ... 7.5
3 ... 5.5
10.8 9.84 7.09 6.61 10.51 2/2 5.91 M5 >1.97 >1.97
I55APxxxF
10 ... 15
7.5 ... 11
11.2 11.42 7.09 6.81 12.2 2/2 5.91 M5 >1.97 >1.97
