6.5.2 Integrated DC bus connection

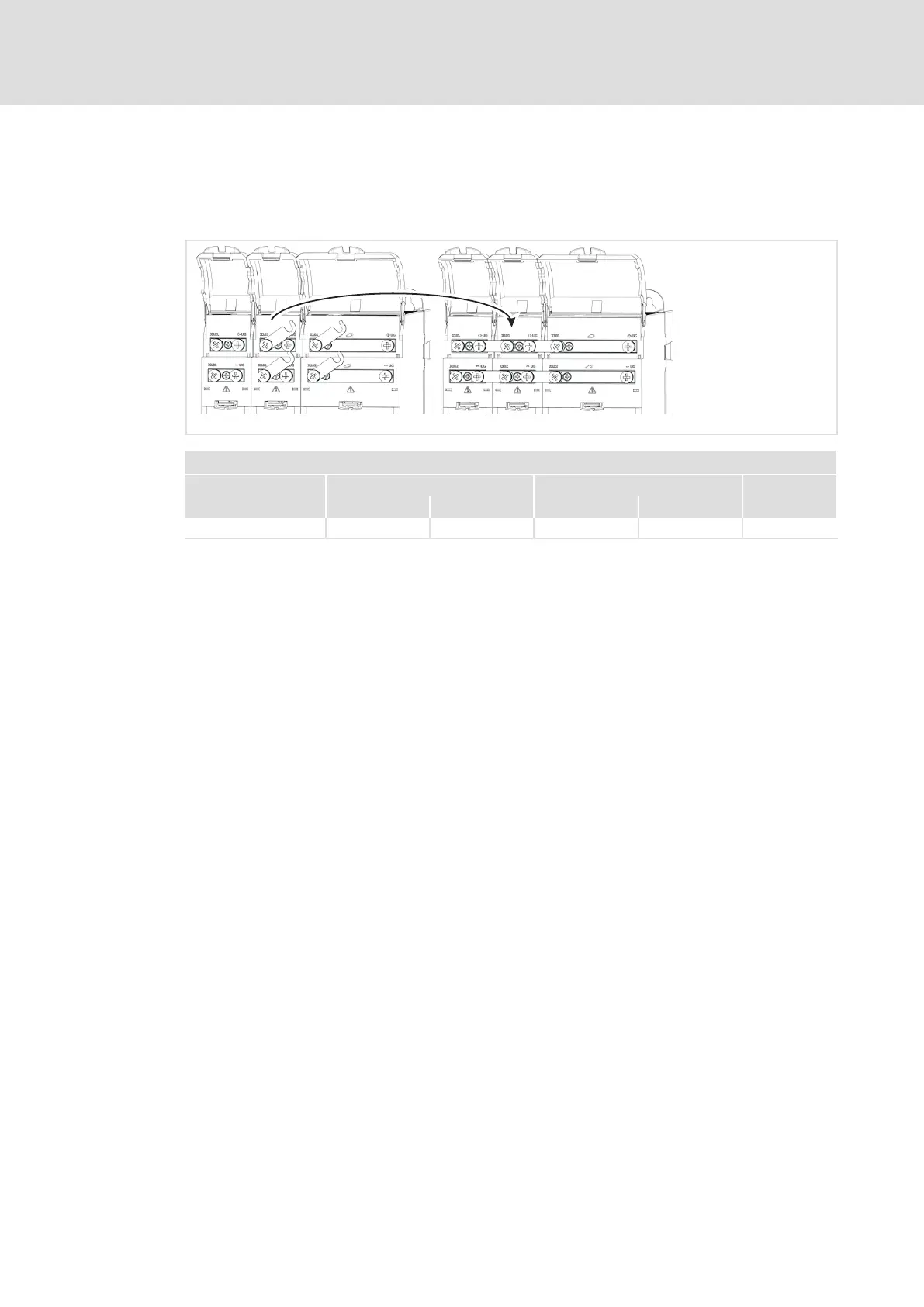

ƒ Establish the DC bus connection from the power supply module up to the last axis
module
i700A00x
Terminal data
Conductor cross−section Tightening torque
!
[mm
2
] [AWG] [Nm] [lb−in]
Swivel hook − − 5.0 44.3 PH 3
