Lenze i700 Series

Diagnostics
LED status displays
Supply modules
9
l 127
EDS700ACBA EN 5.1

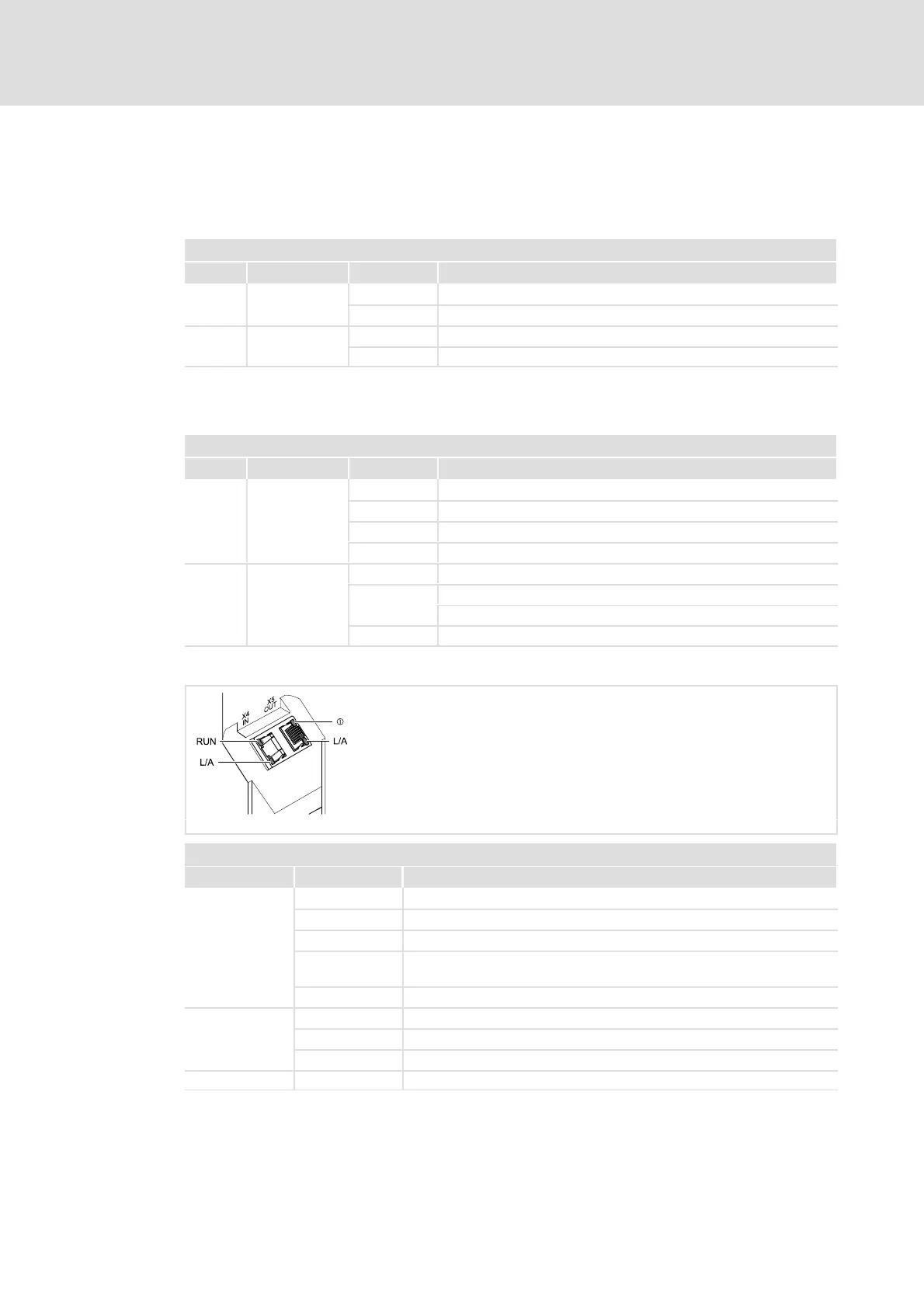

9.2 LED status displays
9.2.1 Supply modules
LED display of power supply module − V100
Colour Name Status Description
blue RDY off 24−V supply voltage off or £ 18 V
is ON 24−V supply voltage ok, module ready for operation
red ERR off Power supply module ready for operation
is ON Error/fault
9.2.2 Axis modules
LED display of axis module − V101
Colour Name Status Description
blue RDY off 24−V supply voltage off or £ 18 V
is ON 24−V supply voltage ok, module ready for operation
blinking Axis module inhibited
fast blinking Optical device identification (simultaneously with red/ERR)
red ERR off Axis module ready for operation − no error − axis A (and B)
is ON Error/fault − device
Error/fault − axis A (or B)
fast blinking Optical device identification (simultaneously with blue/RDY)
i700AX045 b
LED display of axis module − X4/X5 EtherCAT IN/OUT
Name Status Description
RUN is ON "Operational" status is active.
flickering "Bootstrap" status is active.
blinking "Pre−operational" status is active.
blinking once
(single flash)
"Safe−operational" status is active.
off Fieldbus communication is not active or is in the "Init" state.
L/A is ON Physical EtherCAT connection is available.
flickering Data are exchanged via EtherCAT.
off Physical EtherCAT−CAT connection is not available
 − This LED is used for internal diagnostic purposes.
