Lenze L-force Communication ModemCAN EMF2181IB - Connection of System Bus (CAN)

Electrical installation
Connection of system bus (CAN)
6
EDKMF2181 DE/EN/FR/ES/IT 3.0 53

H1_E_INST-SteckerFederkraftAnschluss FKCT
Connection of system bus (CAN)
2181FEW001K

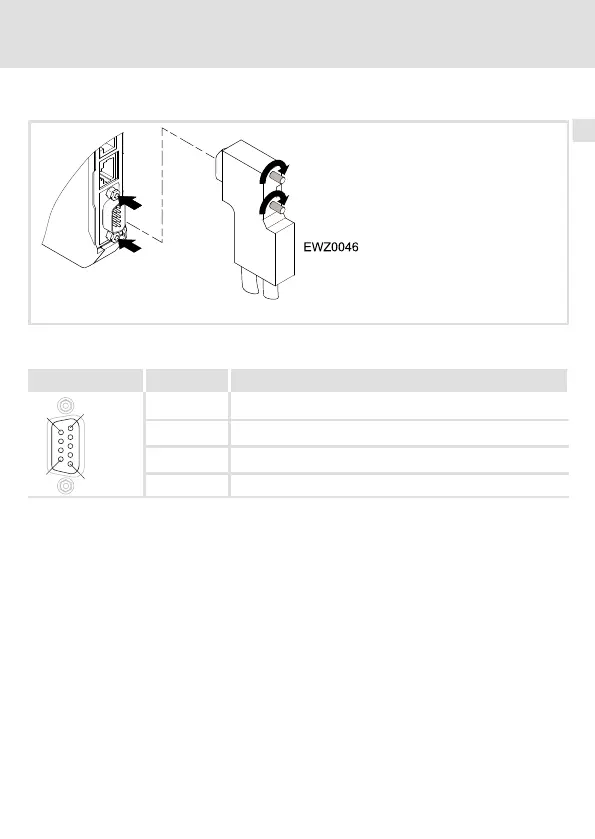

Assignment of the Sub-D plug connector
View Pin Assignment
1
6
5
9
1, 4, 5, 6, 8, 9 -
2 CAN-LO
3 CAN-GND
7 CAN-HI
