Lenze L-force Communication ModemCAN EMF2181IB - 8 Diagnostics; LED Status Displays

8 Diagnostics
LED status displays
EDKMF2181 DE/EN/FR/ES/IT 3.0
62

H1_Diagnose-st_00tu0
8 Diagnostics
LED status displays

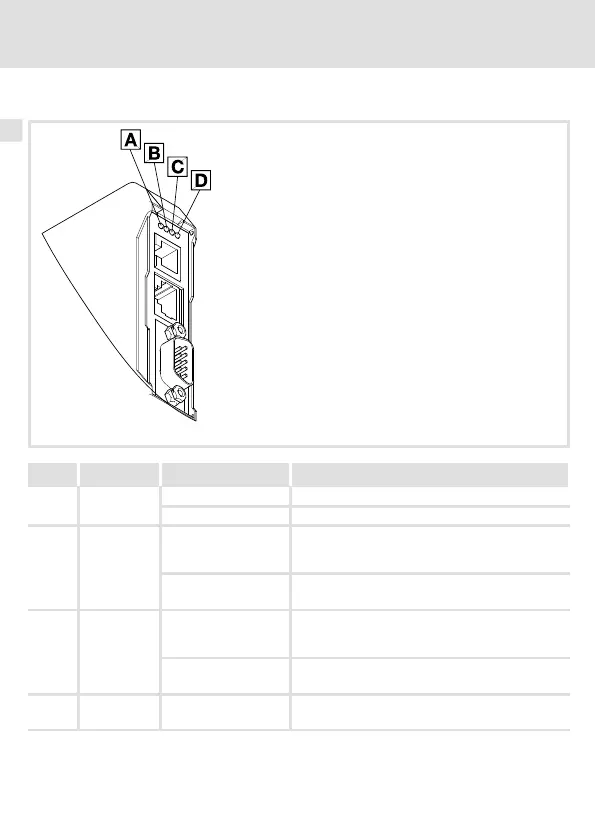

2181FEW001H
Pos. Colour State Description

(M)
yellow
on The ModemCAN 2181 is ready for operation.
blinking Active communication over the telephone network

(E)
red
on
 Operation via the diagnostic interface:
No device is connected to the diagnostic
interface.
see 63
 Operation via CAN:
ERR LED

(R)
green
on
 Operation via the diagnostic interface:
A device is connected to the diagnostic
interface.
see 63
 Operation via CAN:
RUN-LED

(P)
green on The ModemCAN 2181 is supplied with voltage.
