6 Electrical installation
Telephone connection
EDKMF2181 DE/EN/FR/ES/IT 3.0 58

H1_E_INST-SteckerFederkraftAnschluss FKCT
Worldwide, the telephone sockets differ from each other. For the most important
standards, the following cables are supplied with the product:
TAE connecting cable
2181FEW012
1a 1
2b 2
3w 3
4e 4
5a2 5
6b2 6
2181FEW013

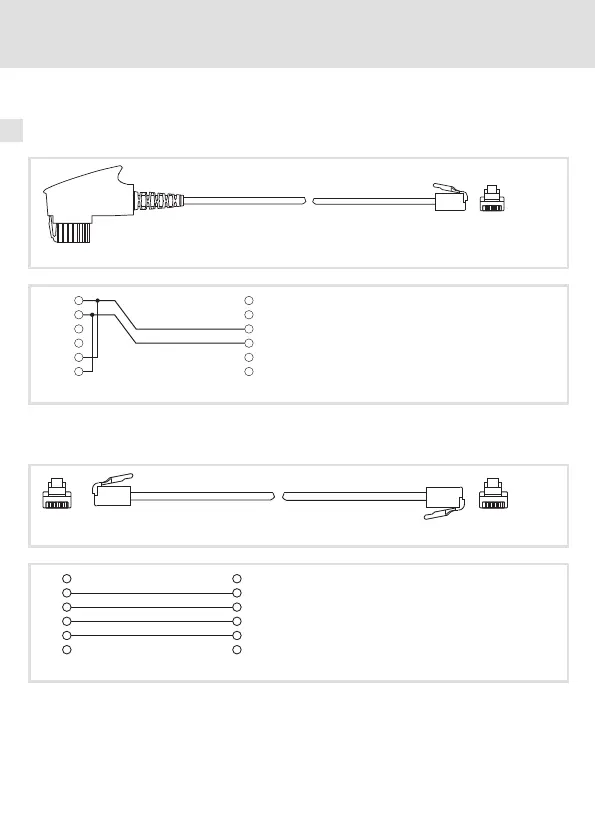

Fig. 1 Terminal assignment TAE-N plug and RJ11 plug (6p/4c)
Modular connecting cable
2181FEW014
1 1
2 2
3 3
4 4
5 5
6 6
2181FEW015
Fig. 2 Terminal assignment of the two RJ11 plugs (6p/4c)
