Lenze Smart Motor m300-E - Page 80

g500-B820 ... B1500

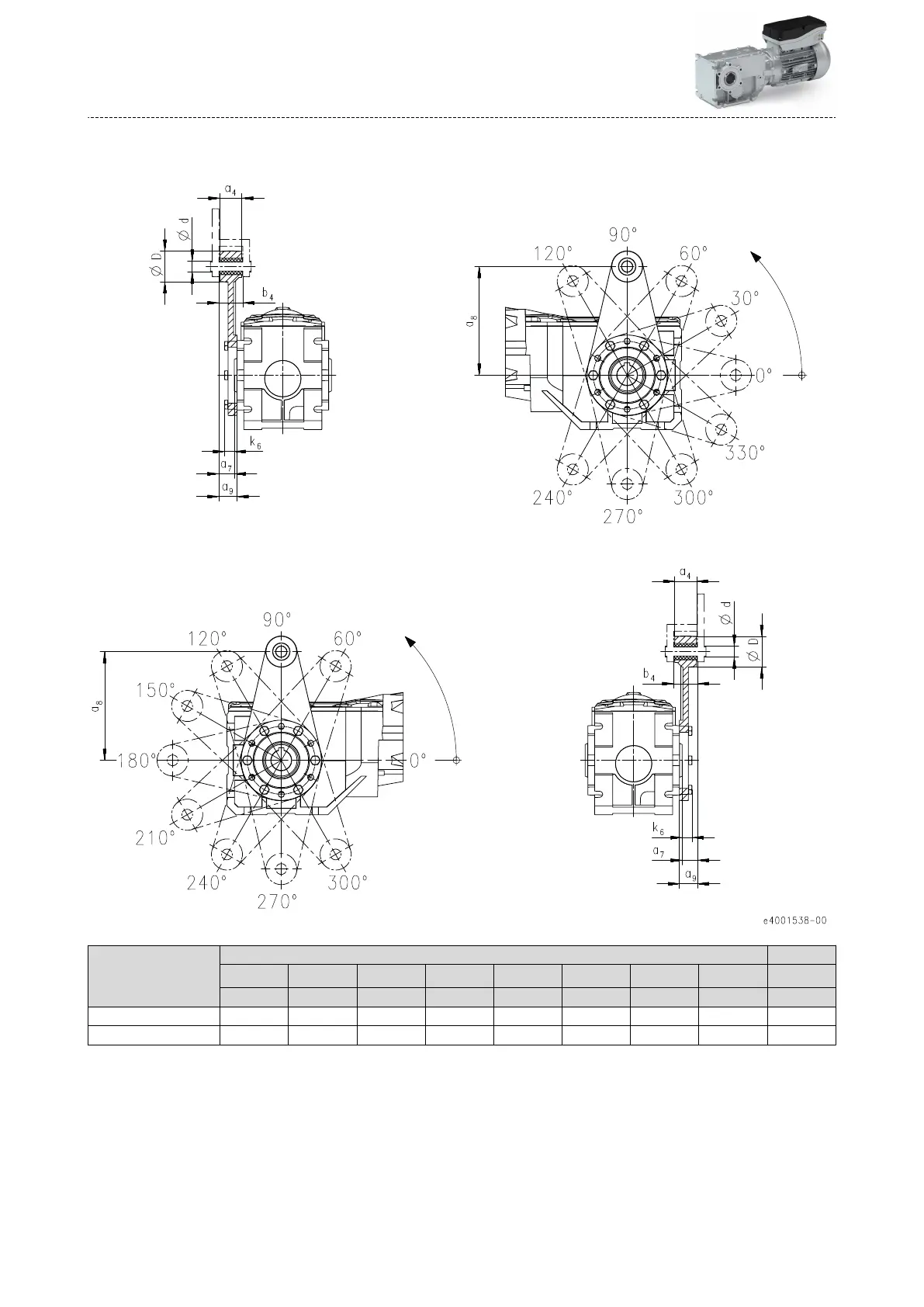

Gearbox Dimensions Mass
a
4
a
7
a
8
a
9
b
4
d D k
6
m
mm mm mm mm mm mm mm mm kg
g500-B820 38.0 28.0 200 31.5 40.0 20.0 50.0 20.5 2.5
g500-B1500 44.0 32.0 250 36.0 46.0 25.0 65.0 24.0 4.5
Product extensions
T
orque plates
80
