8 Lenze 13466187 EDBTL03 v8 EN, DE, FR, IT, ES
Installation
Tml002
Type
a
[mm]
a1
[mm]
b
[mm]
b1
[mm]
b2
[mm]
c
[mm]
s1
[mm]
s2
[mm]
m
[kg]
ETML251X2SFA
ETML371X2SFA
93 84 146 128 17 83 15 50 0.5
ETML551X2SFA
ETML751X2SFA
93 84 146 128 17 92 15 50 0.6
ETML112X2SFA
ETML152X2SFA
114 105 146 128 17 124 15 50 1.2
ETML222X2SFA 114 105 146 128 17 140 15 50 1.4
WARNING!
Drives must not be installed where subjected to adverse environmental conditions
such as: combustible, oily, or hazardous vapors or dust; excessive moisture; excessive
vibration or excessive temperatures. Contact Lenze for more information.

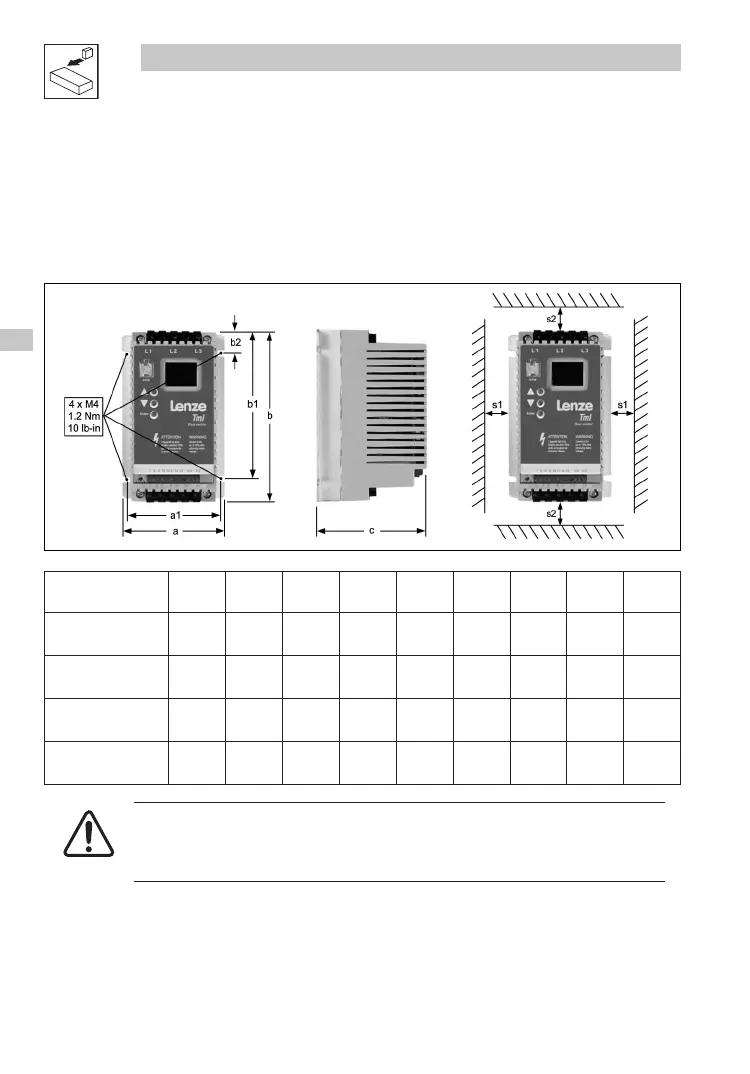

3 Installation
3.1 Mechanical installation
3.1.1 Dimensions and mounting
