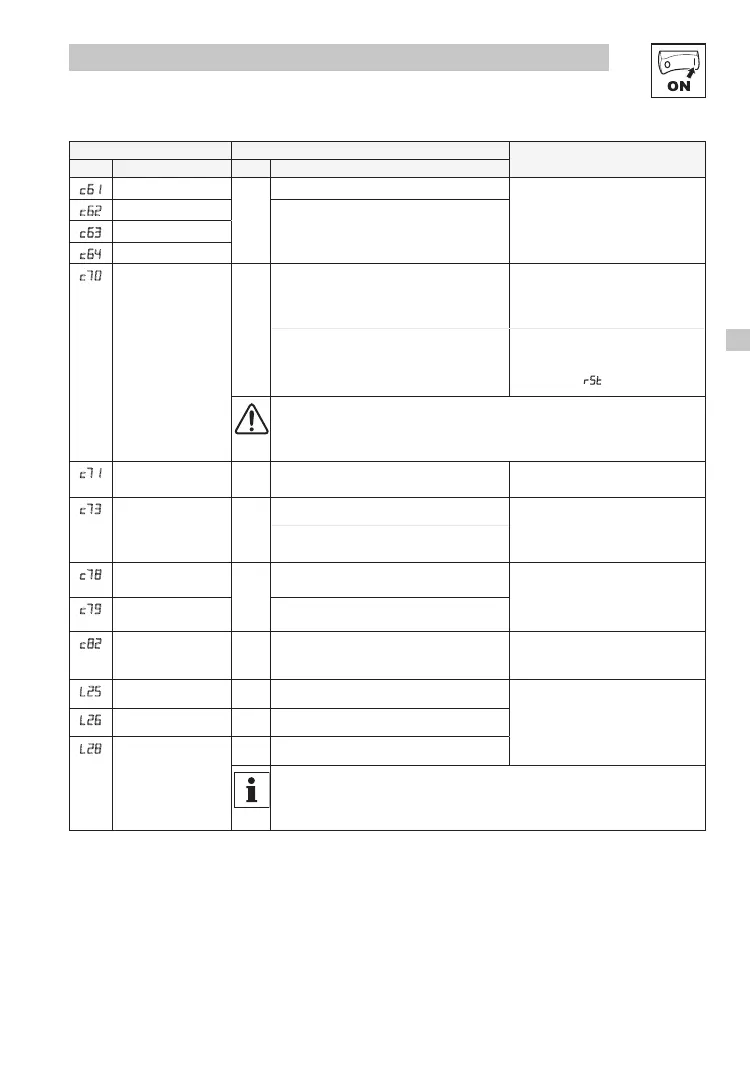

Commissioning
Code Possible Settings
IMPORTANT
No. Name Lenze Selection
c61
Present status/error status/error message • Display
• Refer to Section 5 for explanation
of status and error messages
c62
Last error error message
c63
Last error but one
c64
Last error but two
c70
CongurationTRIP
reset (error reset)
0
0 TRIP reset after LOW-HIGH change at
terminal 28, mains switching, or after
LOW-HIGHchangeatdigitalinput“TRIP
reset”
1 Auto-TRIP reset • Auto-TRIP reset after the time
set in c71
• More than 8 errors in 10 minutes
will trigger rSt fault
WARNING!
Automatic starting/restarting may cause damage to equipment and/or injury to
personnel! Automatic starting/restarting should only be used on equipment that
is inaccessible to personnel.
c71
Auto-TRIP reset
delay
0.0
0.0 {s} 60.0
See c70
c73
Input voltage
selection
0 Low (for 200 V input)
• Lenze setting depends on C93
• Duringcommissioning,conrm
correct setting based on mains
voltage
1 High (for 230 V input)
c78
Operating time
counter
Display
Totaltimeinstatus“Start”
0...999 h: format xxx
1000...9999 h: format x.xx (x1000)
10000...99999 h: format xx.x (x1000)
c79
Mains connection
time counter
Display
Total time of mains = on
c82
S-ramp integration
time
0.0
0.0 {s} 50.0 • c82 = 0.0: Linear accel/decel ramp
• c82 > 0.0: Adjusts S-ramp curve
for smoother ramp
L25
Skip frequency 1 0.0
0.0 {Hz} 240 • L25andL26denethestartofthe
skip range
• L28denesthebandwidthofthe
skip range
L26
Skip frequency 2 0.0
0.0 {Hz} 240
L28
Skip frequency
bandwidth
0.0
0.0 {Hz} 10.0
Note
Bandwidth (Hz) = f
s
(Hz) + L28 (Hz) f
s
= L25 or L26
Example: L25 = 18 Hz and L28 = 4 Hz; the bandwidth = 18...22 Hz
