Illustration
Description
Aids / Tools

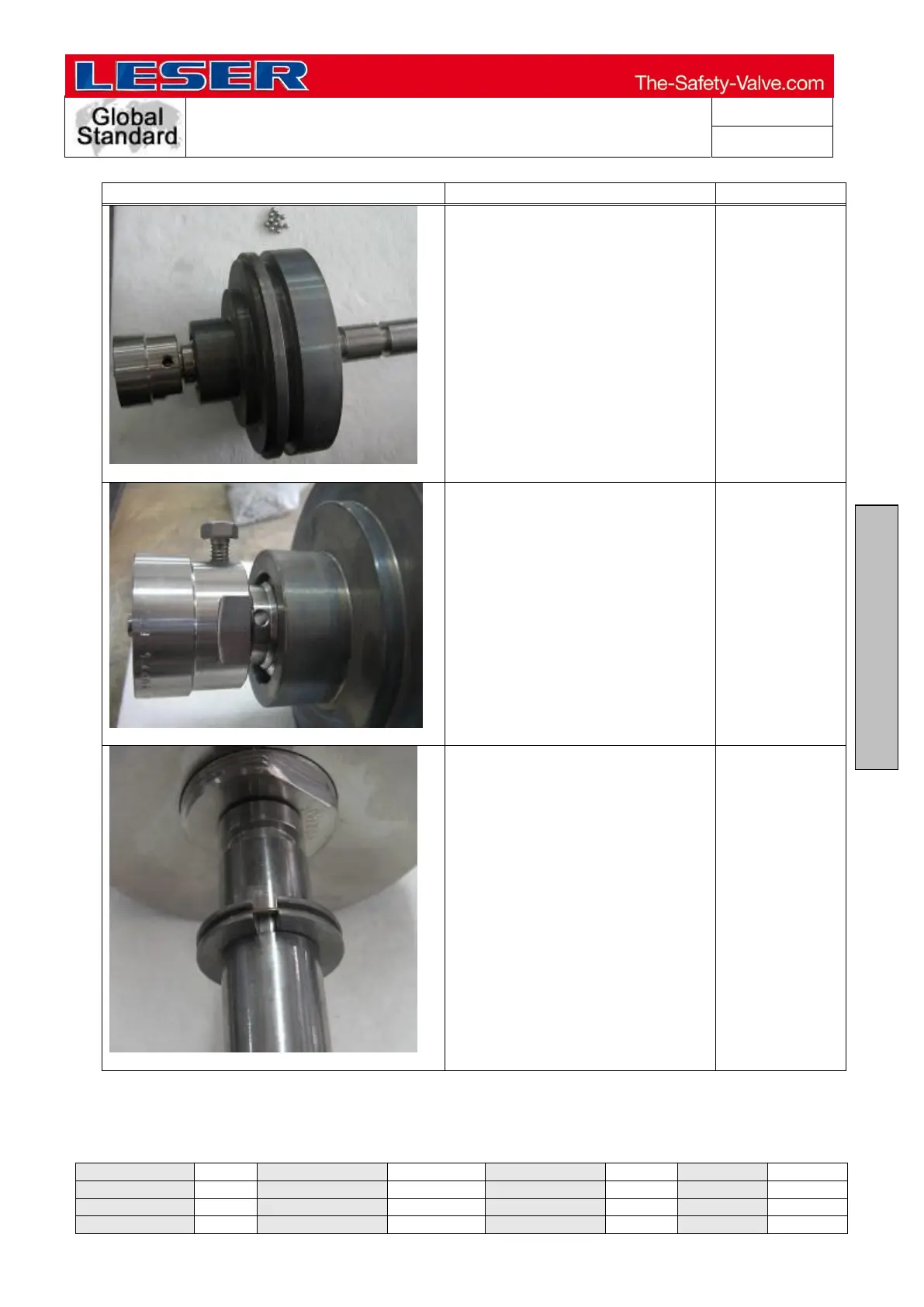

Figure 9.5.2-8
Put the disc on the spindle. Put
the balls into the opening of the
disc, or alternatively secure the
disc with a pin (depending on the
disc version).
Figure 9.5.2-9
Screw the clamping screw into
the disc hole.
Ring spanner
Figure 9.5.2-10
Put half-washer into the recess
and secure with a retaining clip.
