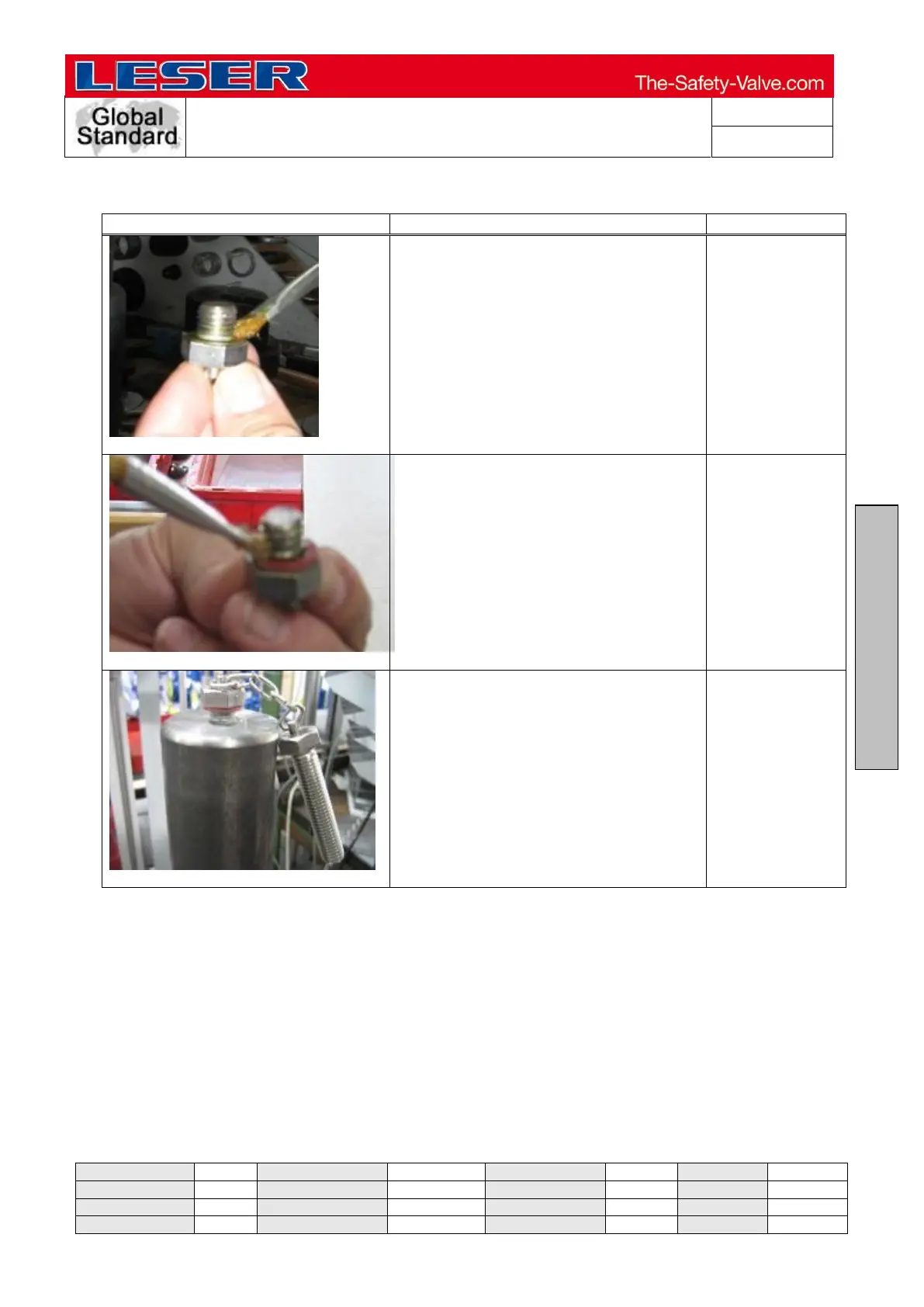

9.13 Installation of the test gag (possible for H2 and H4)
Illustration
Description
Aids / Tools
Figure 9.13-1
Grease the sealing surface of the short
bolt.
Brush
Halocarbon
(OI-56 S / 60H)
Figure 9.13-2
Put on the sealing ring and grease it as
well.
Brush
Halocarbon
(OI-56 S / 60H)
Figure 9.13-3
Screw the test gag into the cap or lever
and tighten (torque as per LGS 3323).
