9.10 Testing the seat tightness P12
This test is performed for every valve after setting the pressure.
The exact execution of the test is described in a separate work instruction AA-EF-
013.
9.11 Assembly of the cap / lever
9.11.1 Assembly of cap H2
Illustration
Description
Aids / Tools

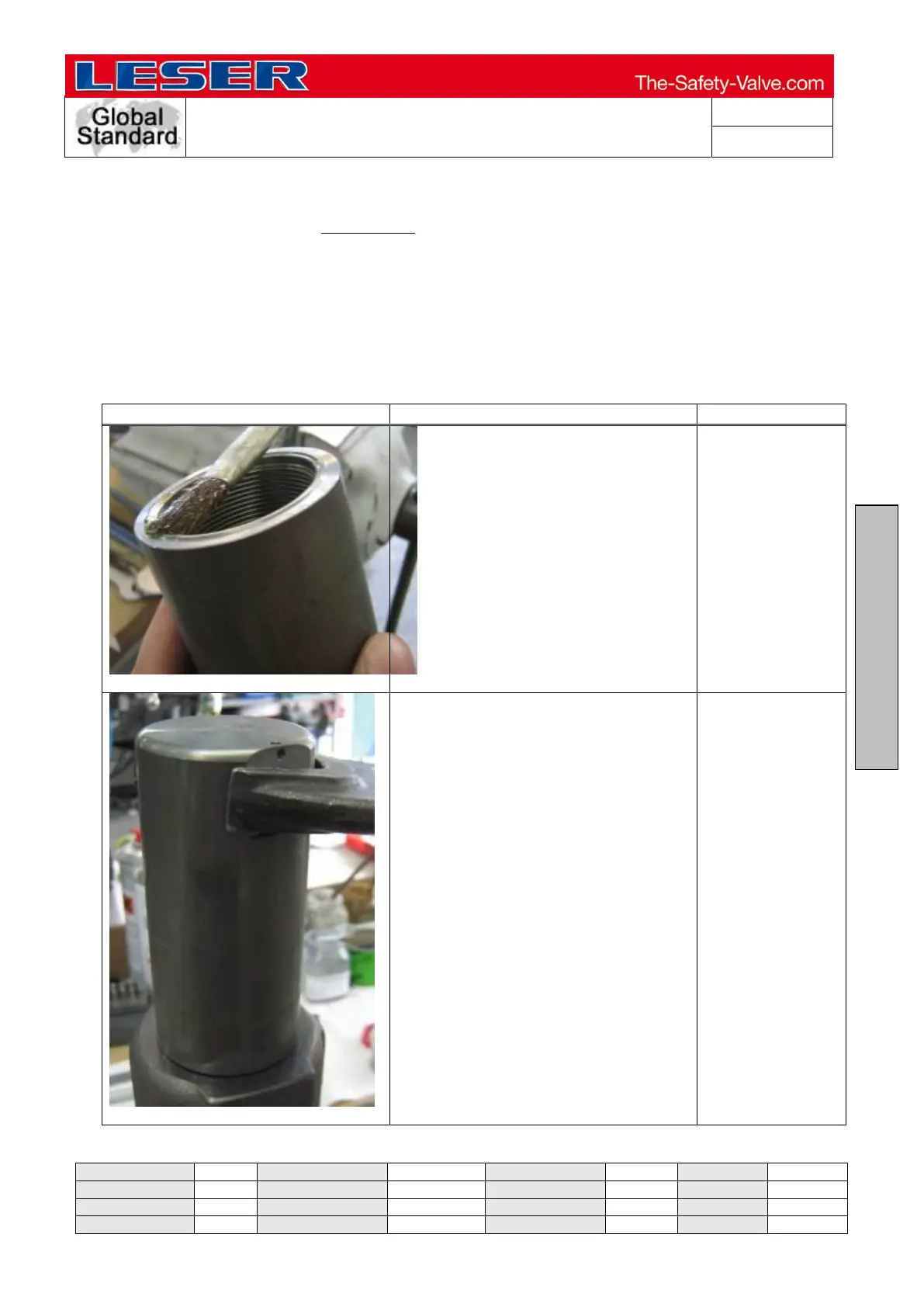

Figure 9.11.1-1
Grease the thread and sealing face of
the cap.
Brush
Halocarbon
(OI-56 S / 60H)
Figure 9.11.1-2
Screw on the cap and tighten with a
spanner.
(Set torque as per LGS 3323).
Open-end
spanner
