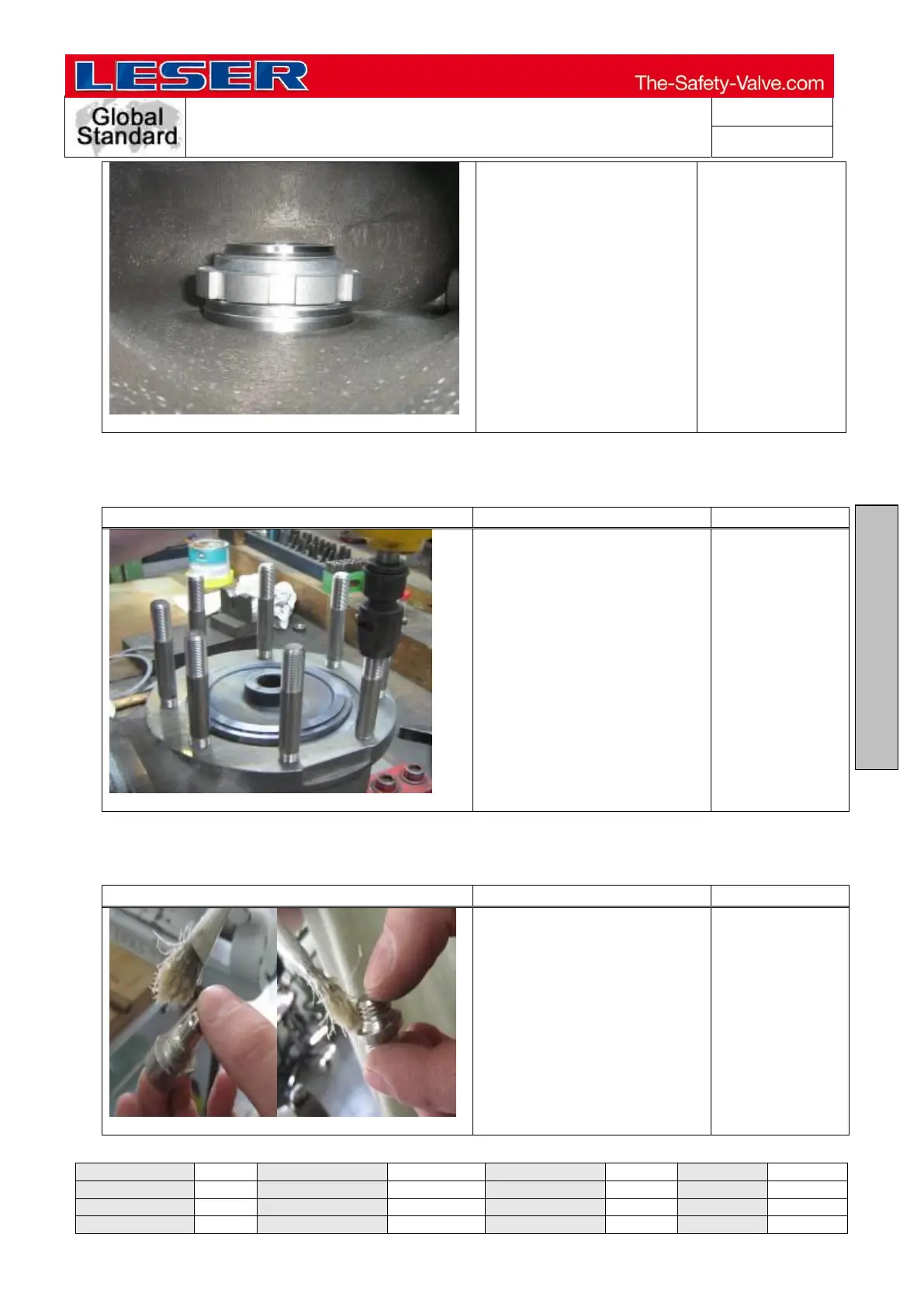

Figure 9.1-4
Screw the blow down ring
completely down to the
nozzle.
9.2 Screw the studs into the body.
Illustration
Description
Aids / Tools
Figure 9.2-1
Screw in the studs with an
impact wrench.
Tip: Place the guide washer
on the opening of the body
so that no studs can fall on
the seat.
Impact wrench
9.3 Installation of the locking screw and screw plug
Illustration
Description
Aids / Tools
Figure 9.3-1
Grease the locking screw
and screw plug.
Brush
Halocarbon
(OI-56 S / 60H)
