9.8 Assembly of the adjusting screw
Illustration
Description
Aids / Tools

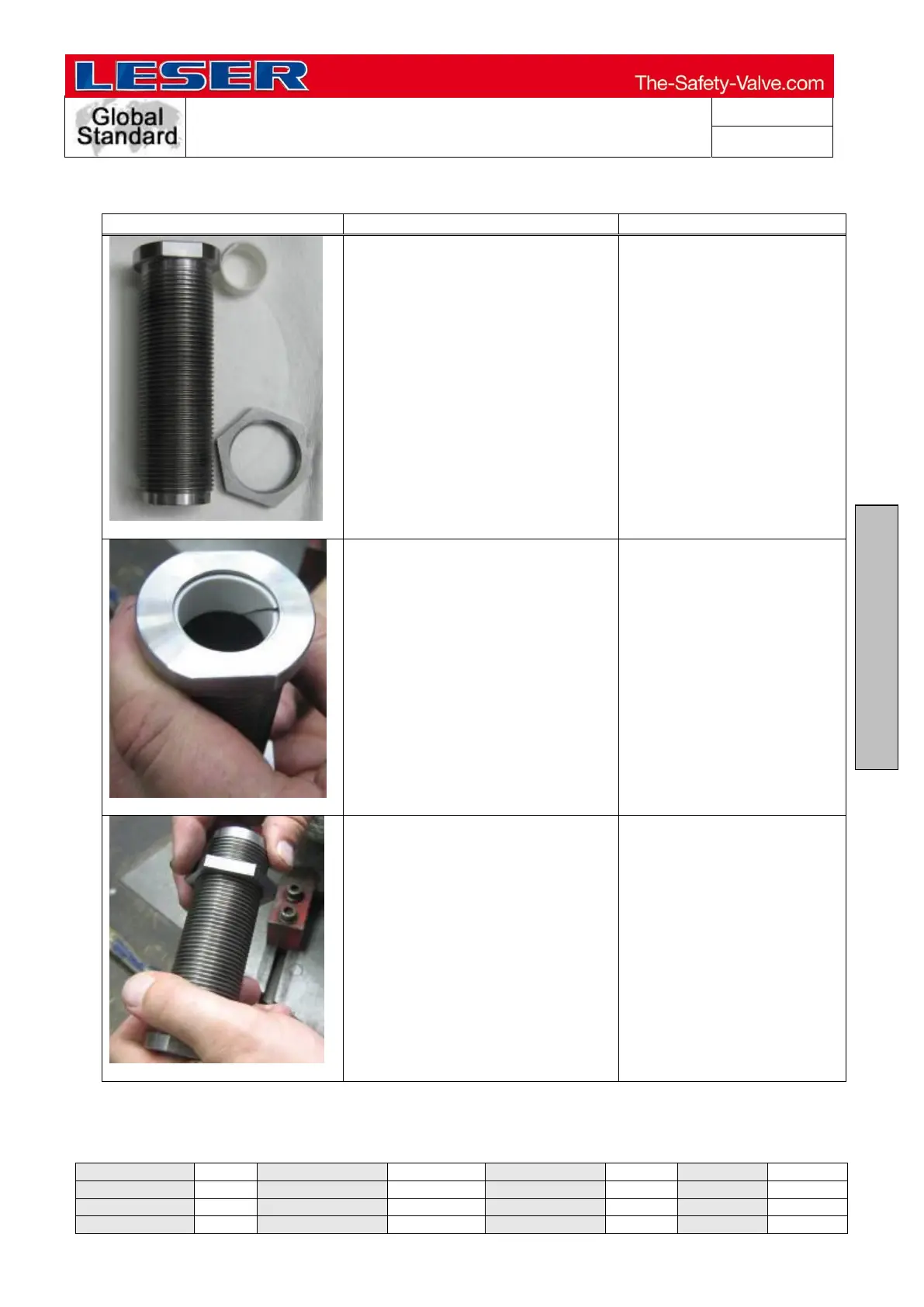

Figure 9.8-1
Individual parts of the adjusting
screw
Figure 9.8-2
Put the bushing in the adjusting
screw.
Figure 9.8-3
Screw the lock nut on
approximately three-quarters of
the way down the adjusting
screw.
