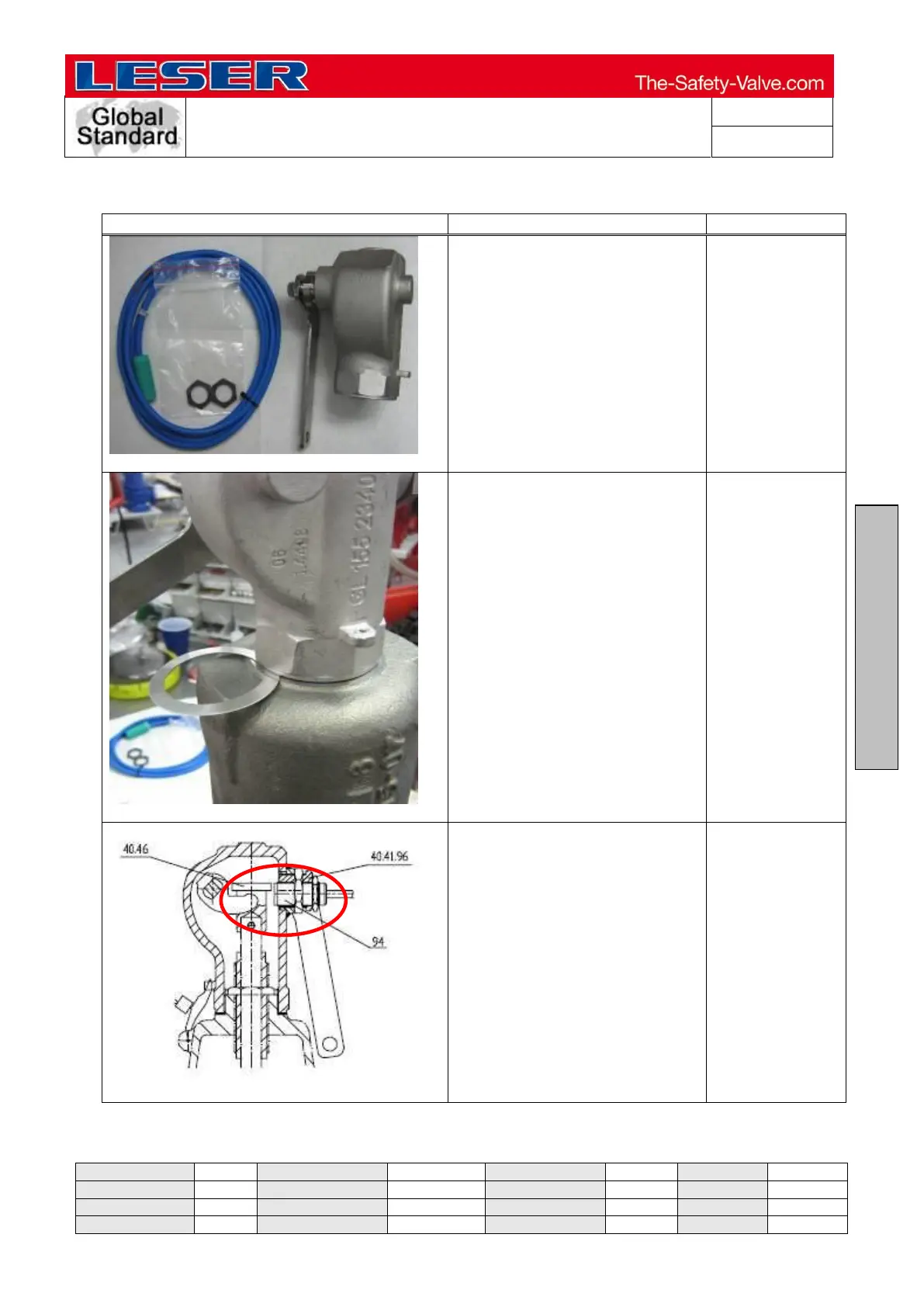

9.12 Assembly of the lift indicator
Illustration
Description
Aids / Tools
Figure 9.12-1
Individual parts of the lift
indicator
Figure 9.12-2
Put the cap into position as
described in 13.3 and secure.
Open-end
spanner
Figure 9.12-3
Put the eccentric hole of the
holder into such a position that
the collar of the spindle cap
would seal on top with the edge
of the lift indicator (see
illustration).
