Illustration
Description
Aids / Tools

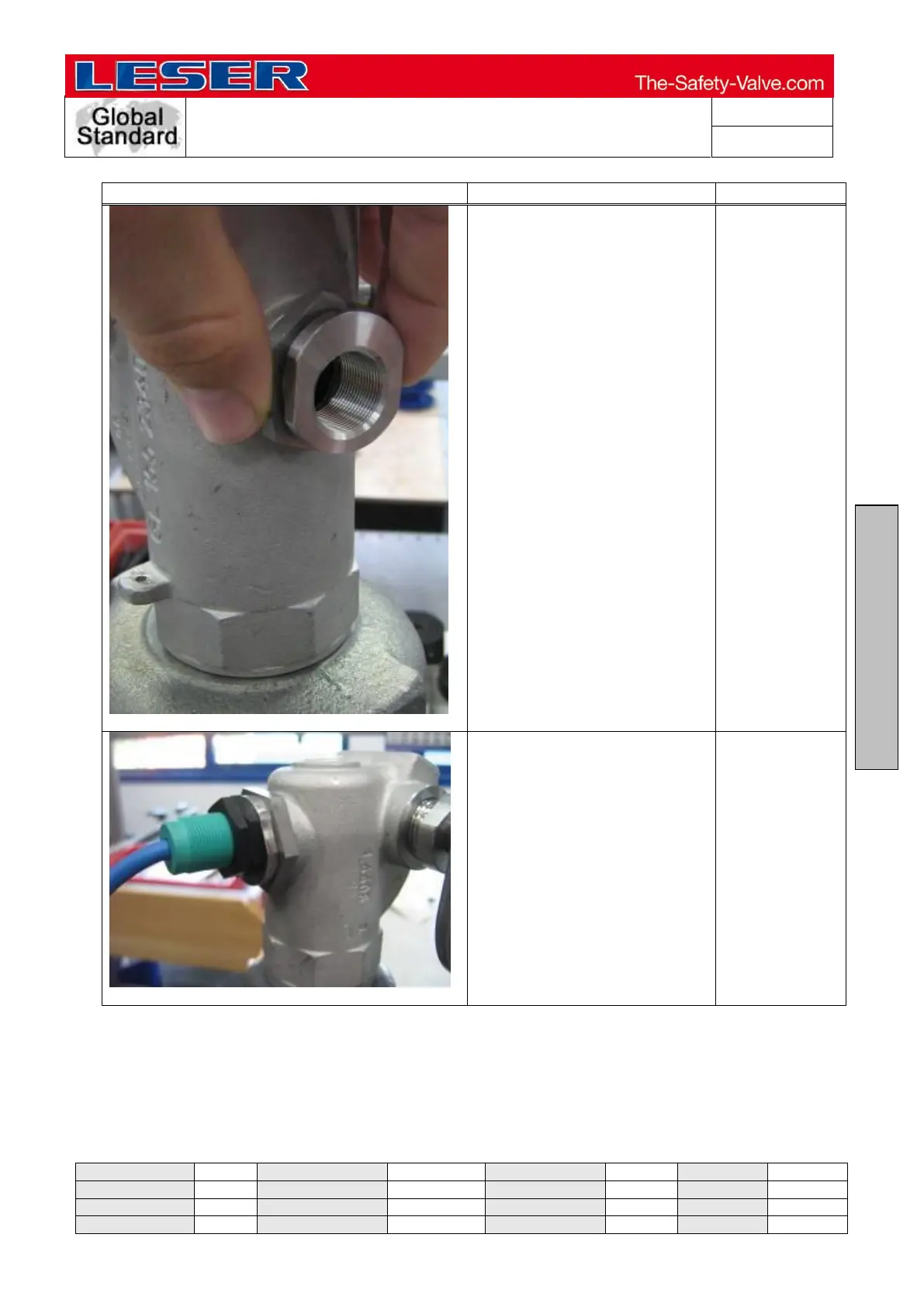

Figure 9.12-4
Secure the position with a lock
nut.
Figure 9.12-5
Screw the lift indicator into the
collar of the spindle cap as far
as it will go. Then unscrew it
one complete turn.
Secure the position of the lift
indicator by tightening the first
nut hand tight.
Then lock with a second nut.
